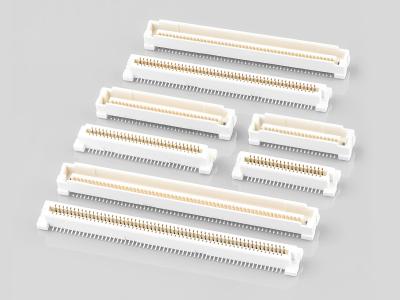

  • High Density Board To Board Connector Supplier, Pitch 0.8mm, replace TE AMP
    High Density Board To Board Connector Supplier, Pitch 0.8mm, mating height 5.0mm, replace TE AMP

    Board to Board connector

    0.8mm

    2*10-2*100 pin

    100V

    0.5A

    RoHS

    High Density Board To Board Connector Supplier, Pitch 0.8mm, mating height 5.0mm, replace TE AMP
    Product Description:GH8111&GH8112 Pitch 0.8mm, board to board connector, multiple board connector, replacement of TE, AMP, FCI board to board connector.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Gold flash3.   Electrical performance:        3.1    Rated: 100V/0.5A        3.2    Insulation Resistance:  500MΩ min(Min)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:As many devices has evolved to become more compact and high-functioning. The “floating connector” has been contributing to reduce the stress which occurs to connecting parts when screwing fastening to the PCB, as well as when having multiple connectors mounted on one single PCB.Application:Floating connectors have been used in wide range of applications from car infotainment systems for automotive applications as well as medical, manufacturing, regardless of industrial or consumer applications. Abundant options for number of pins and height variations make it possible for the floating connector to be flexible to use regardless of application.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • GH5059 Led light connector
    GH5059, Led light connector, pitch 2.8mm, 1-3 pin, Side entry connector, Wago 2059 replacement

    LED bulb connector

    2.8mm

    1-3pin

    300V

    3A

    24AWG

    RoHS

    GH5059, Led light connector, pitch 2.8mm, 1-3 pin, Side entry connector, Wago 2059 replacement
    Product Description:GH5059 Led light connector, pitch 2.8mm, 1-3 pin, Side entry connector, Wago 2059 replacementProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 3A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Strip Length: 4.5~5mm        3.6    Cross section: 24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowing Terminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 1–3 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • G20 F0013 Pitch 2.0mm Intelligent Light Connector, smart light connector, female connector
    G20 F0013, Led light connector, Intelligent Lighting connector, pitch 2.0mm, 2-6 pin, double row, Female mating connector

    LED bulb connector

    2.0mm

    2-6pin

    275V

    1A

    RoHS

    G20 F0013, Led light connector, Intelligent Lighting connector, pitch 2.0mm, 2-6 pin, double row, Female mating connector
    Product Description:F0013, Led light connector, Intelligent Lighting connector, pitch 2.0mm, 2-6 pin, double row, Female mating connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 2–6 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbIntelligent Lighting connectorSmartLighting connectorAvailable: Tuya, Xiaomi, Ayla, Homekit platformCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • H0010 Spotlight Connector, led light connector
    H0010, 2 pin Spotlight Connector, pitch 5.3mm, right angle outdoor connector, indoor connector

    Lighting Connector

    5.3mm

    2pin

    275V

    1A

    RoHS

    H0010, 2 pin Spotlight Connector, pitch 5.3mm, right angle outdoor connector, indoor connector
    Product Description:H0010, 2 pin Spotlight Connector, pitch 5.3mm, right angle outdoor connector, indoor connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsDelivery in tape-and-reel packaging for full integration into DIP soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED spot lightCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • K0055&K0056 Down light connector Luminaire Disconnect
    K0055&K0056 Down light connector Luminaire Disconnect, safely disconnecting hot and neutral ballast wiring

    Lighting Connector

    5.7mm

    2pin

    600V

    3A

    18AWG

    UL

    IP65

    K0055&K0056 Down light connector Luminaire Disconnect, safely disconnecting hot and neutral ballast wiring
    Product Description:K0055&K0056 Down light connector Luminaire Disconnect, safely disconnecting hot and neutral ballast wiringProperty Details:1.   Materials:        1.1    Housing: PA66 UL94 V-0        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in 50u" min3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 3A        3.3    Insulation Resistance: 100MΩ min        3.4    Contact Resistance: 60mΩ MAX. (Initial)                                                             100Ω MAX. (After life test)        3.5    withstanding voltage: 2200V AC R.M.S/1m        3.6    Strip Length: 8-9mm        3.7    Cross section:18AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Down light connectorThe Power Plug features patented GHGM push-in technology that quickly locks wires in place.It helps reduce electrical shock hazard during ballast replacement by safely disconnecting hot and neutral ballast wiring while offering additional safety since both halves meet UL and CSA finger-probe safety requirements. Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • GH0851 Waterproof Landscape Lighting Cable Connector
    Waterproof Landscape Lighting Cable Connector, outdoor connector, low voltage cable lighting connector

    Waterproof Connector

    12V

    10A

    12/14/16/18AWG SPT-2W

    RoHS

    IP65

    Waterproof Landscape Lighting Cable Connector, outdoor connector, low voltage cable lighting connector
    Product Description:GH0851 Waterproof Landscape Lighting Cable Connector, outdoor connector, low voltage calbe lighting connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Gold flash3.   Electrical performance:        3.1    Voltage Rated: 12V        3.2    Current Rated: 10A        3.3    Underground wire: 18, 16, 14, or 12AWG        3.3    Light wire: 18 AWG4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Enables you to connect low-voltage landscape fixtures to 12-volt rated landscape cable systems.Easy to install with no tools required for faster installImproved design allows connection of 18, 16, 14, or 12 gauge low voltage cable with 18 gauge fixture lead wiresHeavy duty plastic constructionBlack finish.Application:Outdoor Landscape Lighting Cable Connector.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

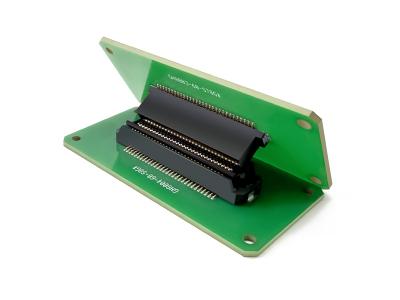

  • Floating Multiple Board Connector
    Pitch 0.5mm, Floating Board To Board Multiple Board Connector Supplier Replaces Iriso Hirose Molex

    Board to Board connector

    0.5mm

    2*20-2*80 pin

    50V

    0.5A

    RoHS

    Pitch 0.5mm, Floating Board To Board Multiple Board Connector Supplier Replaces Iriso Hirose Molex
    Product Description:GH8001&GH8002 Pitch 0.5mm, floating board to board connector, multiple board connector, replacement of iriso, hirose, molex board to board connector floating type.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Gold flash3.   Electrical performance:        3.1    Rated: Signal Pin, 50V/0.5A, Power Pin, 200V/50A        3.2    Insulation Resistance:  Signal Pin, 100MΩ min(Min)                                                                Power Pin, 1000MΩ min(Min)        3.3    Dielectric withstanding voltage:                                                     Signal Pin, 150VAC R.M.S/1m                                                    Power Pin, 600VAC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:As many devices has evolved to become more compact and high-functioning. The “floating connector” has been contributing to reduce the stress which occurs to connecting parts when screwing fastening to the PCB, as well as when having multiple connectors mounted on one single PCB.GHGM floating connector series has started from 0.5mm pitch, then it has progressed to 0.635mm, 0.8mm, and 0.4mm pitch connector.Application:Floating connectors have been used in wide range of applications from car infotainment systems for automotive applications as well as medical, manufacturing, regardless of industrial or consumer applications. Abundant options for number of pins and height variations make it possible for the floating connector to be flexible to use regardless of application.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • M3002 Tube Light Connector Male Connector
    M3002, Tube light connector, smd T8 Light Fixture

    Lighting Connector

    2-6pin

    275V

    1A

    RoHS

    M3002, Tube light connector, smd T8 Light Fixture
    Product Description:M3002, Tube light connector, G17 femail connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:Tube lightCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • GH25D01 2 row, 5 position, Slide Switch SMT DIP
    GH25D01 Slide Switch Double Pole Double Throw (DPDT), 5 position, SMD/DIP slide switch, 180° handle direction

    Slide Switch

    150V

    0.3A

    RoHS

    5 position

    Vertical

    GH25D01 Slide Switch Double Pole Double Throw (DPDT), 5 position, SMD/DIP slide switch, 180° handle direction
    Product Description:GH25D01 Slide Switch Double Pole Double Throw (DPDT), 5 position, SMD/DIP slide switch, 180° handle directionProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 150V (AC/DC)        3.2    Current Rated: 0.3A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:This series slide switches are designed for use in a wide variety of applications including portable tools, small appliances and floor care products. They feature a high current rating of 6A at 250 Vac yet are still manufactured in a compact housing.Application:Various portable tools, small appliances and floor care productsPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • GH0126 PCB Mount Terminal Block Connector Electronic Components Electronic Hobby Kit1
    GH0126 PCB Mount Terminal Block Connector Electronic Components Electronic Hobby Kit

    Lighting Connector

    5.0mm

    2-24pin

    300V

    10A

    14-26AWG

    UL

    GH0126 PCB Mount Terminal Block Connector Electronic Components Electronic Hobby Kit
    Product Description:GH0126 PCB Mount Terminal Block Connector Electronic Components Electronic Hobby KitThis 2 Pin/ 3 Pin Wire to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 5.0mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 10A.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 10A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowinghis connector can be used safely for current of up to 10A.Available in 2-24 pole configurationsApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • 2-5 pins Waterproof Wire Connector for lighting, Electric Bike, etc
    2-5 pins Waterproof Wire Connector for lighting, Electric Bike, etc

    Waterproof Connector

    RoHS

    IP65

    2-5 pins Waterproof Wire Connector for lighting, Electric Bike, etc
    Product Description:GH016 waterproof Cable gland Cable fixed head, IP68, M16, M18, M20Property Details:1.   Materials:        1.1    Housing: PA66 UL94 V-0        1.2    Water resistent: Rubber2.   RoHS compliant3.   Cable range:        A    2-6mm        B    4-8mm        B    5-10mm4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+100℃Features and Advantages:It can be applied in different conditions with temperature range -40 ° C ~ 85 ° C.Black finish.Application:Cable Glands are widely used to connect and fasten electrical cable ends to equipment and devices.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • Floating Multiple Board Connector
    Pitch 0.635mm Floating Board To Board Multiple Board Connector Supplier Replaces Iriso Hirose Molex

    Board to Board connector

    0.635mm

    2*20-2*60 pin

    50V

    0.5A

    RoHS

    Pitch 0.635mm Floating Board To Board Multiple Board Connector Supplier Replaces Iriso Hirose Molex
    Product Description:GH8005&GH8006 Pitch 0.635mm, floating board to board connector, multiple board connector, replacement of iriso, hirose, molex board to board connector floating type.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Gold flash3.   Electrical performance:        3.1    Rated: Signal Pin, 50V/0.5A, Power Pin, 200V/50A        3.2    Insulation Resistance:  Signal Pin, 100MΩ min(Min)                                                                Power Pin, 1000MΩ min(Min)        3.3    Dielectric withstanding voltage:                                                     Signal Pin, 150VAC R.M.S/1m                                                    Power Pin, 600VAC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:As many devices has evolved to become more compact and high-functioning. The “floating connector” has been contributing to reduce the stress which occurs to connecting parts when screwing fastening to the PCB, as well as when having multiple connectors mounted on one single PCB.GHGM floating connector series has started from 0.5mm pitch, then it has progressed to 0.635mm, 0.8mm, and 0.4mm pitch connector.Application:Floating connectors have been used in wide range of applications from car infotainment systems for automotive applications as well as medical, manufacturing, regardless of industrial or consumer applications. Abundant options for number of pins and height variations make it possible for the floating connector to be flexible to use regardless of application.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
