  • GH5059 Led light connector
    GH5059, Led light connector, pitch 2.8mm, 1-3 pin, Side entry connector, Wago 2059 replacement

    LED bulb connector

    2.8mm

    1-3pin

    300V

    3A

    24AWG

    RoHS

    GH5059, Led light connector, pitch 2.8mm, 1-3 pin, Side entry connector, Wago 2059 replacement
    Product Description:GH5059 Led light connector, pitch 2.8mm, 1-3 pin, Side entry connector, Wago 2059 replacementProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 3A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Strip Length: 4.5~5mm        3.6    Cross section: 24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowing Terminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 1–3 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • GH5060 Led light connector, pitch 3.8mm, 1-3 pin, Side entry connector, Wago 2060 replacement
    GH5060, Led light connector, pitch 3.8mm, 1-3 pin, Side entry connector, Wago 2060 replacement

    Lighting Connector

    3.8mm

    1-3pin

    300V

    9A

    18AWG(Sol&Str)~20AWG(Str)

    UL

    GH5060, Led light connector, pitch 3.8mm, 1-3 pin, Side entry connector, Wago 2060 replacement
    Product Description:GH5060, Led light connector, pitch 3.8mm, 1-3 pin, Side entry connector, Wago 2060 replacementProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 9A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Strip Length: 7~8mm        3.6    Cross section: 18AWG(Sol&Str)~20AWG(Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 1–3 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • Open Side Entry Metal Female Connector
    D0001 Open Side Entry Metal Female Connector

    Lighting Connector

    275V

    5A

    16AWG

    CQC

    D0001 Open Side Entry Metal Female Connector
    Product Description:D0001, Led lighting connector, plugable Side entry connectorProperty Details:1.   Materials: Copper Alloy2.   Plating:         Terminals: Nickel 50 u" Min Underplated                                TIN 80 u" Min on solder tail area3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 5A        3.3    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   Complain cable: OD= φ1.5~2.0mm Max5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 1 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • F5028, Led lighting connector, 1 pin, wiring connector
    F5028, Led lighting connector, single pin, wiring connector

    LED bulb connector

    275V

    1A

    20AWG

    F5028, Led lighting connector, single pin, wiring connector
    Product Description:F5028, Led lighting connector, single pin, wiring connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy T=0.25mm2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Strip Length: 7~8mm        3.6    Cross section: 20~22AWG(Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 1 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • J0002 Side Entry Metal Female Connector
    J0002, Led lighting connector, side entry, metal connector, wiring connector

    Lighting Connector

    275V

    1A

    22AWG - 24AWG

    J0002, Led lighting connector, side entry, metal connector, wiring connector
    Product Description:J0002, Led lighting connector, side entry, metal connector, wiring connectorProperty Details:1.   Materials: C519R-H2.   Plating:         Terminals: Nickel 50 u" Min Underplated                                TIN 80 u" Min on solder tail area3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 5A        3.3    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   Compliant cable: 22~24 AWG (Solid&stranded)                                            Strip Length: 3.5mm5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • J0014 Top Entry wire connector
    J0014, Led lighting connector, side clamp connector, metal connector

    Lighting Connector

    275V

    1A

    22AWG - 24AWG

    J0014, Led lighting connector, side clamp connector, metal connector
    Product Description:J0014, Led lighting connector, side clamp connector, metal connectorProperty Details:1.   Materials: Copper alloy2.   Electrical performance:        2.1    Voltage Rated: 275V (AC/DC)        2.2    Current Rated: 1A        2.3    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)3.   Compliant cable: φ0.3mm (Solid)                                            Strip Length: 3.5mm4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • J0019 Top Entry PCB lighting Connector
    J0019, Led light connector, top entry connector, wiring connector

    Lighting Connector

    275V

    1A

    22AWG - 24AWG

    J0019, Led light connector, top entry connector, wiring connector
    Product Description:J0019, Led light connector, top entry connector, wiring connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.5    Strip Length: 3.2~3.5mm        3.6    Cross section: 22~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • J0023 Side Entry PCB connector
    J0023, Led lighting connector, side entry, metal connector

    Lighting Connector

    J0023, Led lighting connector, side entry, metal connector
    Product Description:J0023, Led lighting connector, side entry, metal connectorProperty Details:1.   Materials: Copper alloy2.   Plating: Terminals: Nickel 50 u" Min Underplated3.   Electrical performance:Voltage Rated: 275V (AC/DC)Current Rated: 5AContact Resistance: 60mΩ MAX. (Initial)                                          100Ω MAX. (After life test)4.   Compliant cable: 22~24 AWG (Solid&stranded)5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year       5.2    Operating temperature range: -40℃~+105℃6.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • J0026 Side Entry PCB Lighting Connector
    J0026, Led light connector, Side entry connector, wiring connector

    Lighting Connector

    50V

    0.3A

    RoHS

    J0026, Led light connector, Side entry connector, wiring connector
    Product Description:J0026, Led light connector, Side entry connector, wiring connectorProperty Details:1.   Materials: Copper alloy2.   Plating:        Terminals: Nickel 50 u" Min Underplated3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Contact Resistance: 60mΩ MAX. (Initial)                                                          100Ω MAX. (After life test)4.   Compliant cable: 18~22AWG (Solid&stranded)5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year       5.2    Operating temperature range: -40℃~+105℃6.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 1–3 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

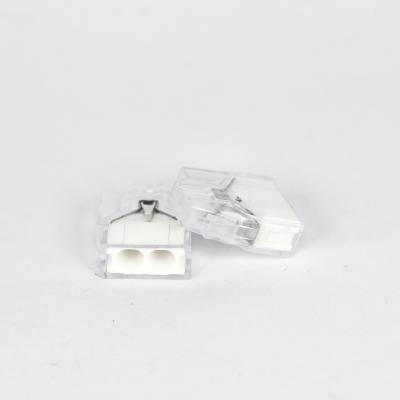

  • GH0773 2 Pin Push In Connector
    GH0773-2pole, lighting connector, pitch 4.0mm push in connector, 4 pin push in wire connector

    Lighting Connector

    4.0mm

    600V

    20A

    12-22 AWG

    RoHS

    GH0773-2pole, lighting connector, pitch 4.0mm push in connector, 4 pin push in wire connector
    Product Description:GH0773-2pole, lighting connector, pitch 4.0mm push in connector, 4 pin push in wire connectorThe GHGM Push-In Wire Connector Set is an excellent choice for joining and insulating 2, 3, 4, 6 or 8 wires. These push-in wire connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 10mm        3.6    Cross section: 14~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 3, 4, 6 or 8 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • GH0773 4 Pin Push In Connector, Non-Twist Connector for Solid, Stranded, and Tin Bonded Wire
    GH0773, lighting connector, push in connector, 4 pin push in wire connectors

    Lighting Connector

    4.0mm

    4pin

    600V

    20A

    12-20AWG(SOL) 14-22AWG(STR)

    RoHS

    GH0773, lighting connector, push in connector, 4 pin push in wire connectors
    Product Description:GH0773, lighting connector, push in connector, 4 pin push in wire connectorThe GHGM Push-In Wire Connector Set is an excellent choice for joining and insulating 2, 3, 4, 6 or 8 wires. These push-in wire connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 10mm        3.6    Cross section: 14~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 3, 4, 6 or 8 wirbHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • GH0773 6 Pin Push In Connector, Non-Twist Connector for Solid, Stranded, and Tin Bonded Wire
    GH0773-6pole, lighting connector, pitch 4.0mm push in connector, 6 pin push in wire connector

    Lighting Connector

    4pin

    600V

    20A

    12-20AWG(SOL) 14-22AWG(STR)

    UL

    GH0773-6pole, lighting connector, pitch 4.0mm push in connector, 6 pin push in wire connector
    Product Description:GH0773-6pole, lighting connector, pitch 4.0mm push in connector, 6 pin push in wire connectorThe GHGM Push-In Wire Connector Set is an excellent choice for joining and insulating 2, 3, 4, 6 or 8 wires. These push-in wire connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 10mm        3.6    Cross section: 14~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 3, 4, 6 or 8 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
