Down Light Connector

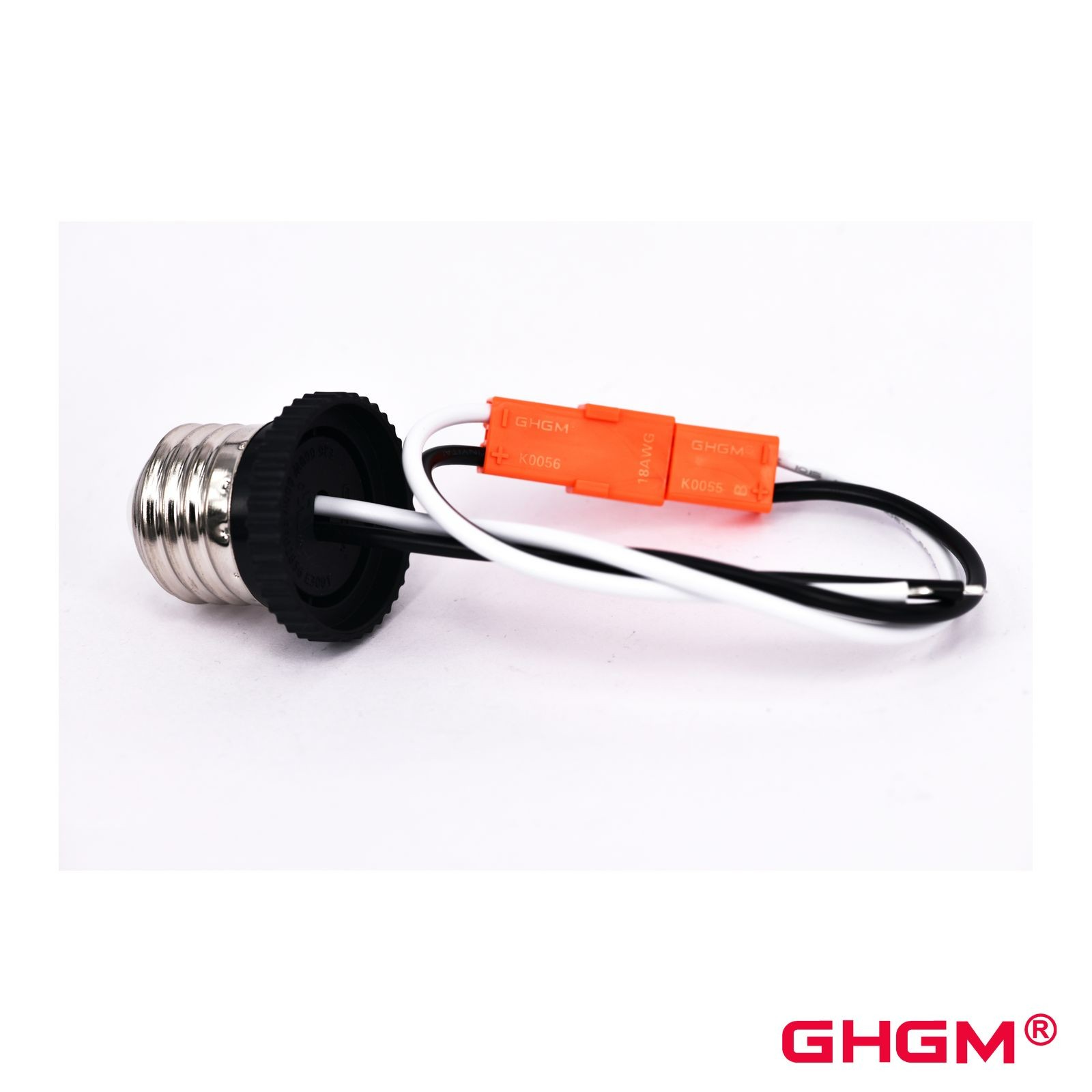

 /K0055&K0056 Down light connector Luminaire Disconnect, safely disconnecting hot and neutral ballast wiring

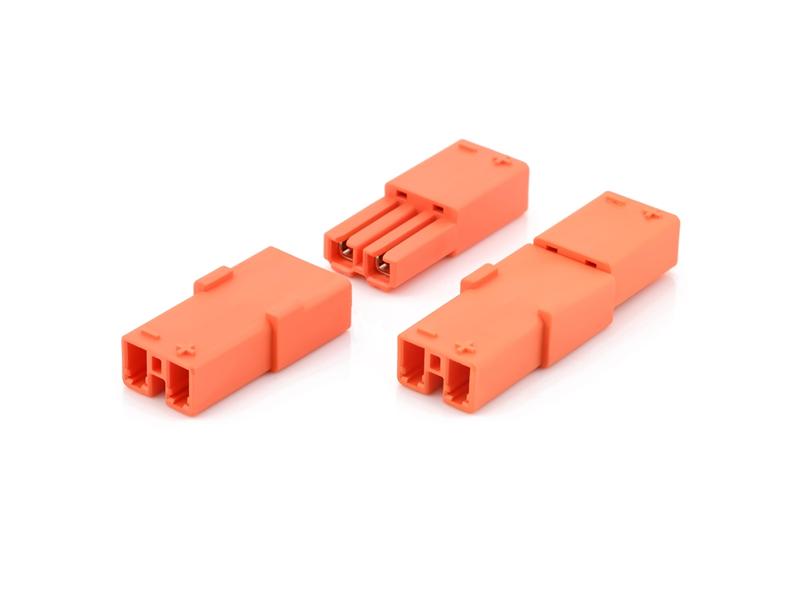

K0055&K0056 Down light connector Luminaire Disconnect
K0055&K0056 Down light connector Luminaire Disconnect K0055&K0056 Down light connector Luminaire Disconnect K0055&K0056 Down light connector Luminaire Disconnect K0055&K0056 Down light connector Luminaire Disconnect

K0055&K0056 Down light connector Luminaire Disconnect, safely disconnecting hot and neutral ballast wiring

  • Brand:

    GHGM

  • Item no.:

    K0055&K0056

  • Application:

    Lighting Connector

  • Pitch:

    5.7mm

  • Pin:

    2pin

  • Material - Housing:

    PA66 UL94 V-0

  • Material - Contact:

    COPPER ALLOY

  • Voltage Rating:

    600V

  • Current Rating:

    3A

  • Wire AWG:

    18AWG

  • Certificate:

    UL

  • Waterproof Rating:

    IP65
Inquiry now

Product Description:

K0055&K0056 Down light connector Luminaire Disconnect, safely disconnecting hot and neutral ballast wiring

Property Details:

1.   Materials:

        1.1    Housing: PA66 UL94 V-0

        1.2    Conductive part: Copper Alloy

        1.3    Spring: Stainless steel

2.   Plating: Terminals: Matte-in 50u" min

3.   Electrical performance:

        3.1    Voltage Rated: 600V (AC/DC)

        3.2    Current Rated: 3A

        3.3    Insulation Resistance: 100MΩ min

        3.4    Contact Resistance: 60mΩ MAX. (Initial)

                                                             100Ω MAX. (After life test)

        3.5    withstanding voltage: 2200V AC R.M.S/1m

        3.6    Strip Length: 8-9mm

        3.7    Cross section:18AWG(Sol&Str)

4.   Environmental Characteristic

        4.1    Storage temperature range: -10℃~+50℃ Half a year

        4.2    Operating temperature range: -40℃~+105℃

5.   RoHS compliant


Features and Advantages:

  • Clear shell gives visual verification of connection

  • No-twist connection reduces repetitive-motion fatigue

  • Low insertion force for fast and easy connections

  • Compact size makes installation easy


Application:

  • Down light connector

  • The Power Plug features patented GHGM push-in technology that quickly locks wires in place.

  • It helps reduce electrical shock hazard during ballast replacement by safely disconnecting hot and neutral ballast wiring while offering additional safety since both halves meet UL and CSA finger-probe safety requirements.


Certificate:

  • The quality control have the first priority in GHGM.

  • Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490

  • Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQC

  • Invention and Patents: US, Germany, Japan, China

GHGM certificate, qualtity control, invention and patents.jpg


Packing and Shipping:

  • We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.

  • Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.

  • These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

GHGM shipping and packing.jpg
