Waterproof Landscape Lighting Cable Connector, outdoor connector, low voltage cable lighting connector

  • Brand:

    GHGM
  • Item no.:

    GH0851
  • Application:

    Waterproof Connector
  • Material - Housing:

    PC UL94 V-2
  • Material - Contact:

    COPPER ALLOY
  • Voltage Rating:

    12V
  • Current Rating:

    10A
  • Wire AWG:

    12/14/16/18AWG SPT-2W
  • Certificate:

    RoHS
  • Waterproof Rating:

    IP65

Product Description:

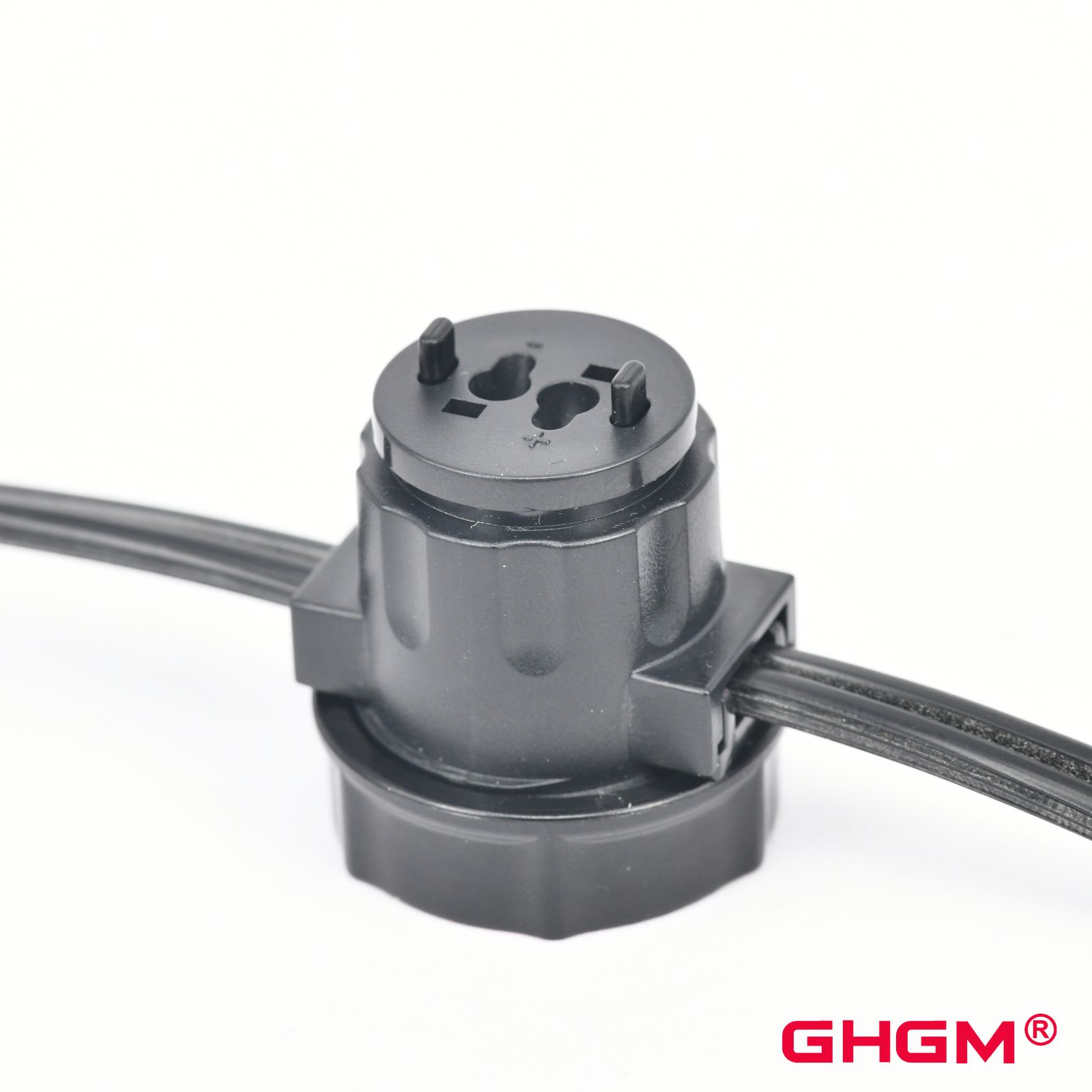

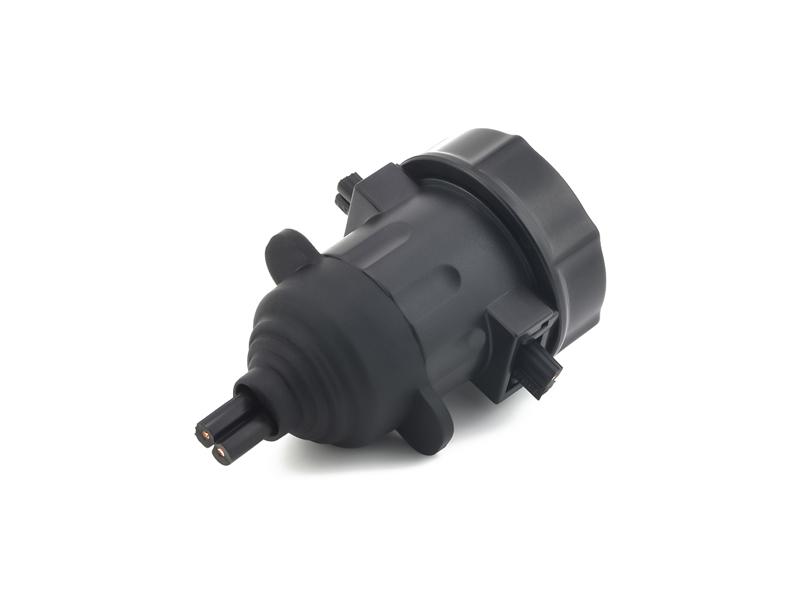

GH0851 Waterproof Landscape Lighting Cable Connector, outdoor connector, low voltage calbe lighting connector


Property Details:

1.   Materials:

        1.1    Housing: LCP UL94 V-0

        1.2    Terminals: Copper Alloy

2.   Plating: Terminals: Gold flash

3.   Electrical performance:

        3.1    Voltage Rated: 12V

        3.2    Current Rated: 10A

        3.3    Underground wire: 18, 16, 14, or 12AWG

        3.3    Light wire: 18 AWG

4.   Environmental Characteristic

        4.1    Storage temperature range: -10℃~+50℃ Half a year

        4.2    Operating temperature range: -40℃~+105℃

5.   RoHS compliant


Features and Advantages:

  • Enables you to connect low-voltage landscape fixtures to 12-volt rated landscape cable systems.

  • Easy to install with no tools required for faster install

  • Improved design allows connection of 18, 16, 14, or 12 gauge low voltage cable with 18 gauge fixture lead wires

  • Heavy duty plastic construction

  • Black finish.


Application:

  • Outdoor Landscape Lighting Cable Connector.


Certificate:

  • The quality control have the first priority in GHGM.

  • Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490

  • Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQC

  • Invention and Patents: US, Germany, Japan, China

GHGM certificate, qualtity control, invention and patents.jpg


Packing and Shipping:

  • We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.

  • Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.

  • These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

GHGM shipping and packing.jpg
