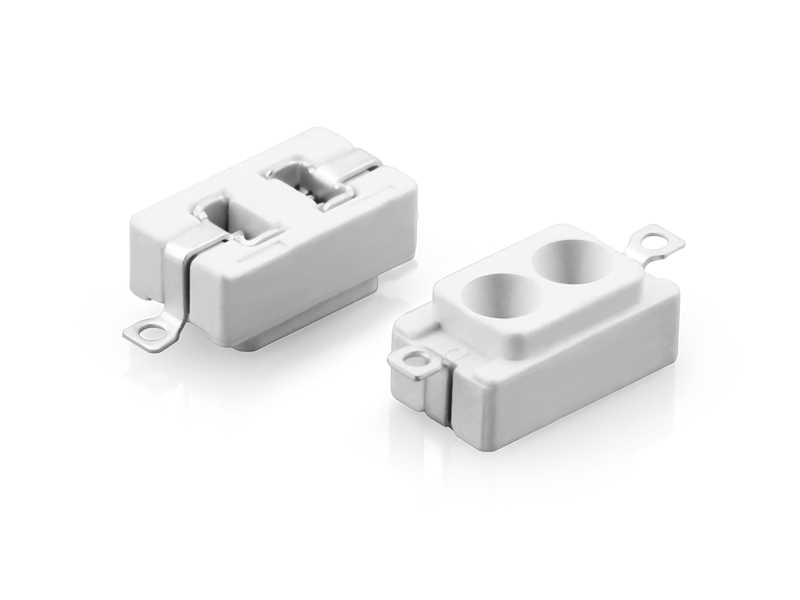

GH5059, Led light connector, pitch 2.8mm, 1-3 pin, Side entry connector, 2059 replacement
Product Description:GH5059 Led light connector, pitch 2.8mm, 1-3 pin, Side entry connector, 2059 replacementProperty Details:1. Materials: 1.1 Housing: LCP UL94 V-0 1.2 Terminals: Copper Alloy2. Plating: Terminals: Matte-in3. Electrical performance: 3.1 Voltage Rated: 300V (AC/DC) 3.2 Current Rated: 3A 3.3 Insulation Resistance: 100MΩ min 3.4 Dielectric withstanding voltage: 500V AC R.M.S/1m 3.5 Strip Length: 4.5~5mm 3.6 Cross section: 24AWG(Sol&Str)4. Environmental Characteristic 4.1 Storage temperature range: -10℃~+50℃ Half a year 4.2 Operating temperature range: -40℃~+105℃5. RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowing Terminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 1–3 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
