High Density BtoB connector

 /High Density Board To Board Connector Supplier, Pitch 0.8mm, mating height 5.0mm, replace TE AMP

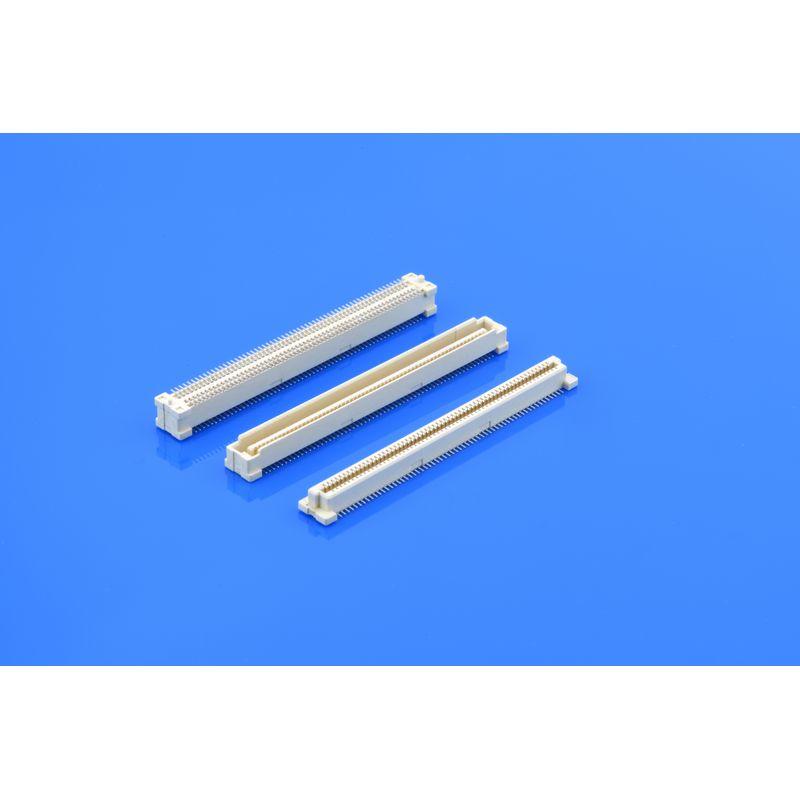

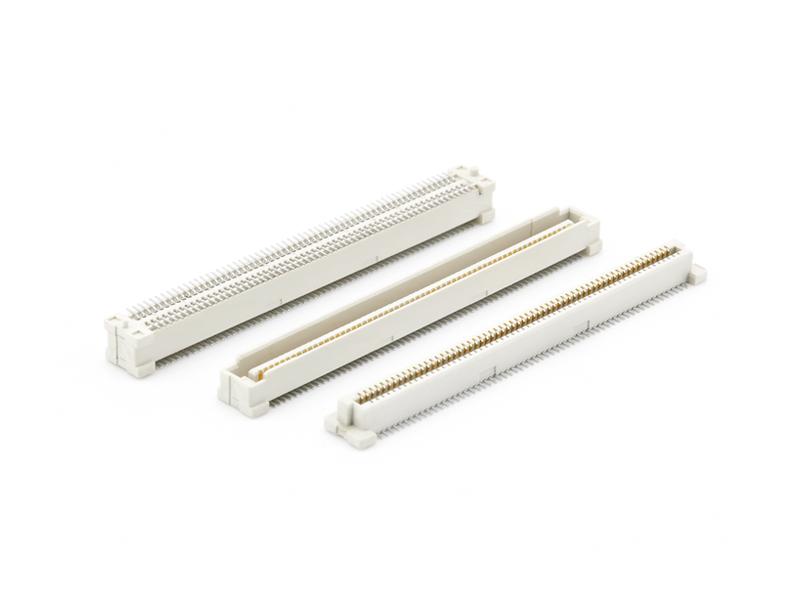

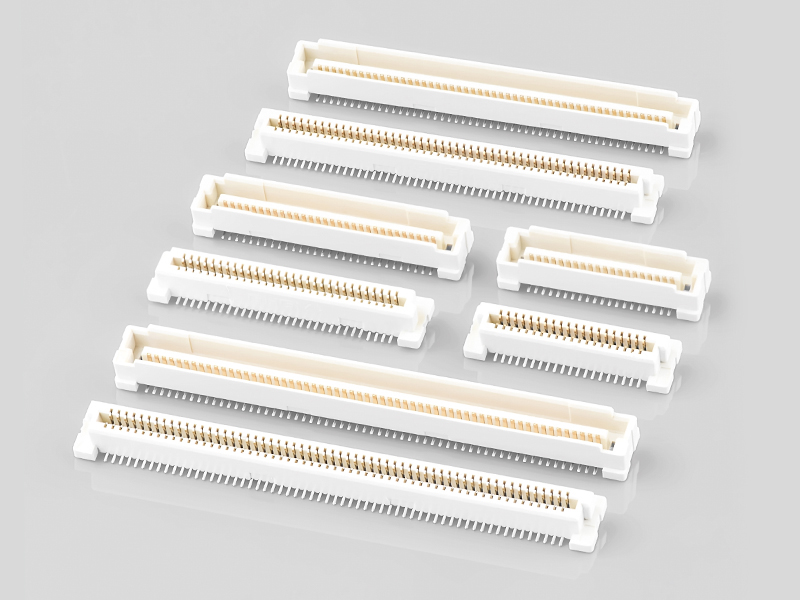

High Density Board To Board Connector Supplier, Pitch 0.8mm, replace TE AMP
High Density Board To Board Connector Supplier, Pitch 0.8mm, replace TE AMP High Density Board To Board Connector Supplier, Pitch 0.8mm, replace TE AMP High Density Board To Board Connector Supplier, Pitch 0.8mm, replace TE AMP

High Density Board To Board Connector Supplier, Pitch 0.8mm, mating height 5.0mm, replace TE AMP

  • Brand:

    GHGM

  • Item no.:

    GH8111&GH8112

  • Goods stock:

    1000

  • Application:

    Board to Board connector

  • Pitch:

    0.8mm

  • Pin:

    2*10-2*100 pin

  • Material - Housing:

    LCP UL94 V-0

  • Material - Contact:

    COPPER ALLOY

  • Voltage Rating:

    100V

  • Current Rating:

    0.5A

  • Certificate:

    RoHS
Inquiry now

Product Description:

GH8111&GH8112 Pitch 0.8mm, board to board connector, multiple board connector, replacement of TE, AMP, FCI board to board connector.


Property Details:

1.   Materials:

        1.1    Housing: LCP UL94 V-0

        1.2    Terminals: Copper Alloy

2.   Plating: Terminals: Gold flash

3.   Electrical performance:

        3.1    Rated: 100V/0.5A

        3.2    Insulation Resistance:  500MΩ min(Min)

4.   Environmental Characteristic

        4.1    Storage temperature range: -10℃~+50℃ Half a year

        4.2    Operating temperature range: -40℃~+105℃

5.   RoHS compliant


Features and Advantages:

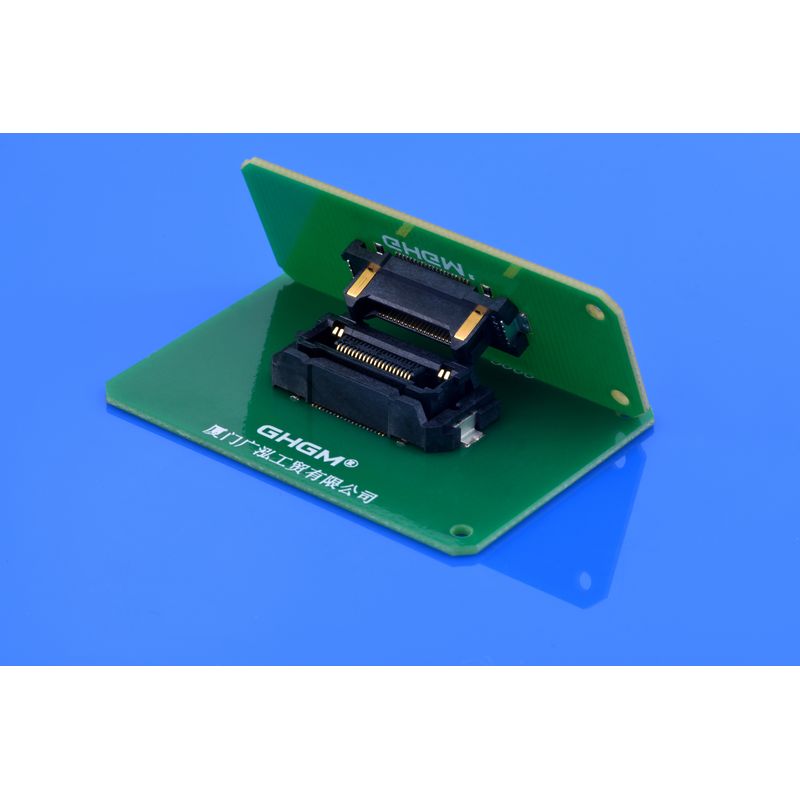

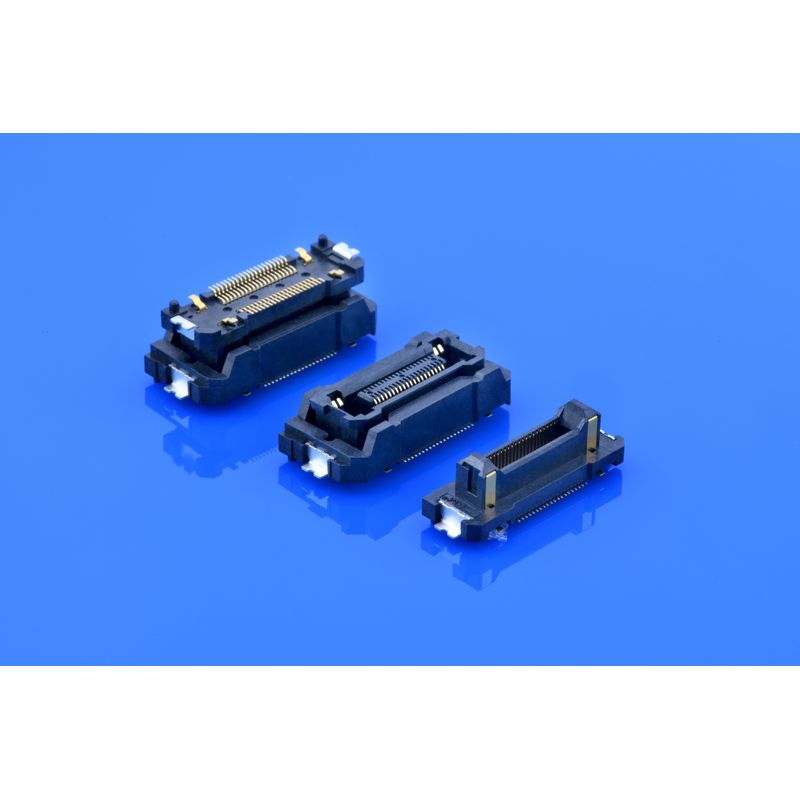

  • As many devices has evolved to become more compact and high-functioning. The “floating connector” has been contributing to reduce the stress which occurs to connecting parts when screwing fastening to the PCB, as well as when having multiple connectors mounted on one single PCB.


Application:

  • Floating connectors have been used in wide range of applications from car infotainment systems for automotive applications as well as medical, manufacturing, regardless of industrial or consumer applications. Abundant options for number of pins and height variations make it possible for the floating connector to be flexible to use regardless of application.


Certificate:

  • The quality control have the first priority in GHGM.

  • Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490

  • Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQC

  • Invention and Patents: US, Germany, Japan, China

GHGM certificate, qualtity control, invention and patents.jpg


Packing and Shipping:

  • We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.

  • Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.

  • These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

GHGM shipping and packing.jpg
