Pitch 0.5mm Floating Board To Board Multiple Board Connector Supplier

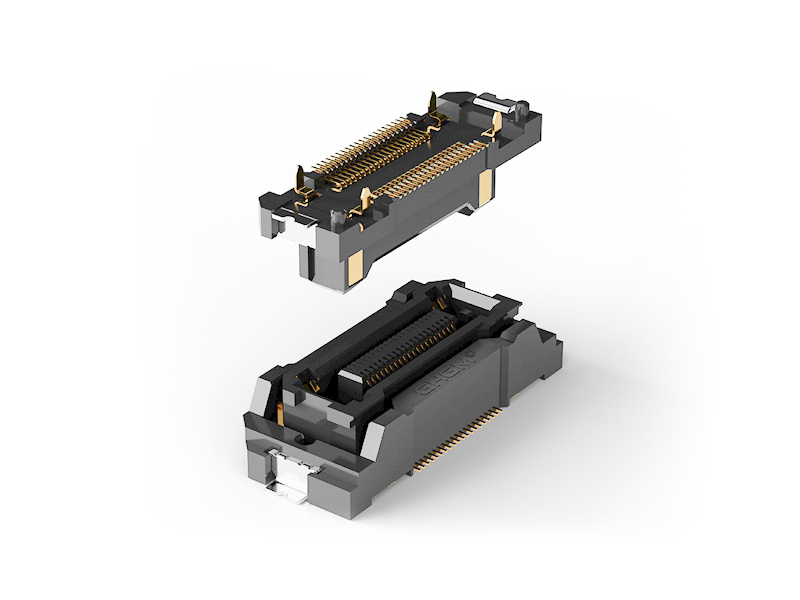

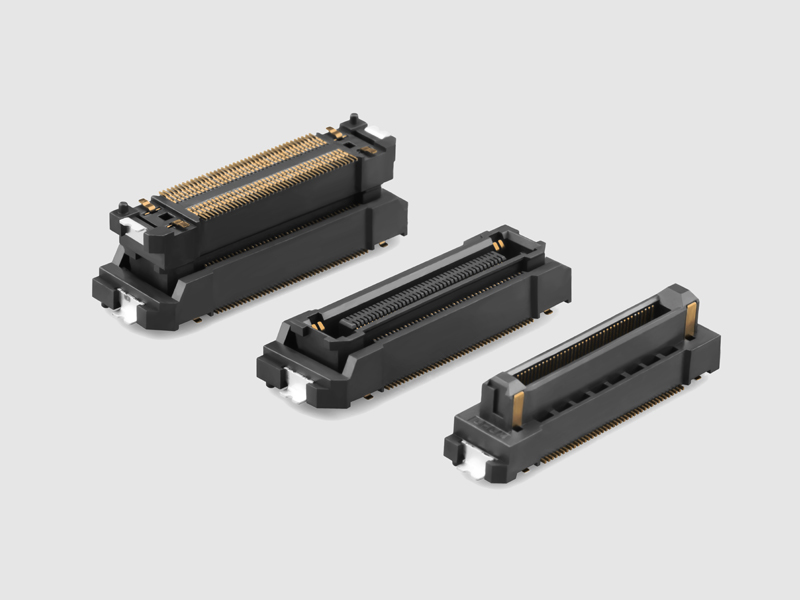

Product Description:GH8003&GH8004 Pitch 0.8mm, floating board to board connector, multiple board connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Gold flash3.   Electrical performance:        3.1    Rated: Signal Pin, 50V/0.5A, Power Pin, 200V/50A        3.2    Insulation Resistance:  Signal Pin, 100MΩ min(Min)                                                                Power Pin, 1000MΩ min(Min)        3.3    Dielectric withstanding voltage:                                                     Signal Pin, 150VAC R.M.S/1m                                                    Power Pin, 600VAC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:As many devices has evolved to become more compact and high-functioning. The “floating connector” has been contributing to reduce the stress which occurs to connecting parts when screwing fastening to the PCB, as well as when having multiple connectors mounted on one single PCB.GHGM floating connector series has started from 0.5mm pitch, then it has progressed to 0.635mm, 0.8mm, and 0.4mm pitch connector.Application:Floating connectors have been used in wide range of applications from car infotainment systems for automotive applications as well as medical, manufacturing, regardless of industrial or consumer applications. Abundant options for number of pins and height variations make it possible for the floating connector to be flexible to use regardless of application.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH8005&GH8006 Pitch 0.635mm, floating board to board connector, multiple board connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Gold flash3.   Electrical performance:        3.1    Rated: Signal Pin, 50V/0.5A, Power Pin, 200V/50A        3.2    Insulation Resistance:  Signal Pin, 100MΩ min(Min)                                                                Power Pin, 1000MΩ min(Min)        3.3    Dielectric withstanding voltage:                                                     Signal Pin, 150VAC R.M.S/1m                                                    Power Pin, 600VAC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:As many devices has evolved to become more compact and high-functioning. The “floating connector” has been contributing to reduce the stress which occurs to connecting parts when screwing fastening to the PCB, as well as when having multiple connectors mounted on one single PCB.GHGM floating connector series has started from 0.5mm pitch, then it has progressed to 0.635mm, 0.8mm, and 0.4mm pitch connector.Application:Floating connectors have been used in wide range of applications from car infotainment systems for automotive applications as well as medical, manufacturing, regardless of industrial or consumer applications. Abundant options for number of pins and height variations make it possible for the floating connector to be flexible to use regardless of application.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH8113&GH8114 Pitch 0.5mm, floating board to board connector, multiple board connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Gold flash3.   Electrical performance:        3.1    Rated: 250V/2A        3.2    Insulation Resistance:  1000MΩ min(Min)        3.3    Dielectric withstanding voltage: 500VAC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:As many devices has evolved to become more compact and high-functioning. The “floating connector” has been contributing to reduce the stress which occurs to connecting parts when screwing fastening to the PCB, as well as when having multiple connectors mounted on one single PCB.GHGM floating connector series has started from 0.5mm pitch, then it has progressed to 0.635mm, 0.8mm, and 0.4mm pitch connector.Application:Floating connectors have been used in wide range of applications from car infotainment systems for automotive applications as well as medical, manufacturing, regardless of industrial or consumer applications. Abundant options for number of pins and height variations make it possible for the floating connector to be flexible to use regardless of application.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GHPT4-QU Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：77*35.3*6.2mm2.   Wiring capacity：0.2-6mm²(solid wire) / 0.2-4mm²(Stranded wire), 24-10AWG3.   Voltage/Current：IEC: 800V/32A, UL:600V/30A4.   Wiring quantity：45.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH13D20 DPDT miniature slide switch 90° / 180° handle direction, Slide Switch Double Pole Double Throw (DPDT), 3 position, SMD/DIP slide switchProperty Details:1.   Materials:        1.1    Housing: Bakelite        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 15V (AC/DC)        3.2    Current Rated: 0.3A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:This series slide switches are designed for use in a wide variety of applications including portable tools, small appliances and floor care products. They feature a high current rating of 0.3A at 15 Vac yet are still manufactured in a compact housing.Application:Various portable tools, small appliances and floor care productsPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH8111&GH8112 Pitch 0.8mm, board to board connector, multiple board connector, replacement of TE, AMP, FCI board to board connector.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Gold flash3.   Electrical performance:        3.1    Rated: 100V/0.5A        3.2    Insulation Resistance:  500MΩ min(Min)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:As many devices has evolved to become more compact and high-functioning. The “floating connector” has been contributing to reduce the stress which occurs to connecting parts when screwing fastening to the PCB, as well as when having multiple connectors mounted on one single PCB.Application:Floating connectors have been used in wide range of applications from car infotainment systems for automotive applications as well as medical, manufacturing, regardless of industrial or consumer applications. Abundant options for number of pins and height variations make it possible for the floating connector to be flexible to use regardless of application.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GHPT10 Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：67.7*49.5*10.2mm2.   Wiring capacity：0.5-16mm²(solid wire) / 0.5-10mm²(Stranded wire), 20-6AWG3.   Voltage/Current：IEC: 1000V/57A, UL:600V/60A4.   Wiring quantity：25.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:M5009 Male connector, 2 Pin Needle Connector Adapter Male Double Insert For RGB LED Strip Light Tape LightProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Nickel 50u" min underplated                                             Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
