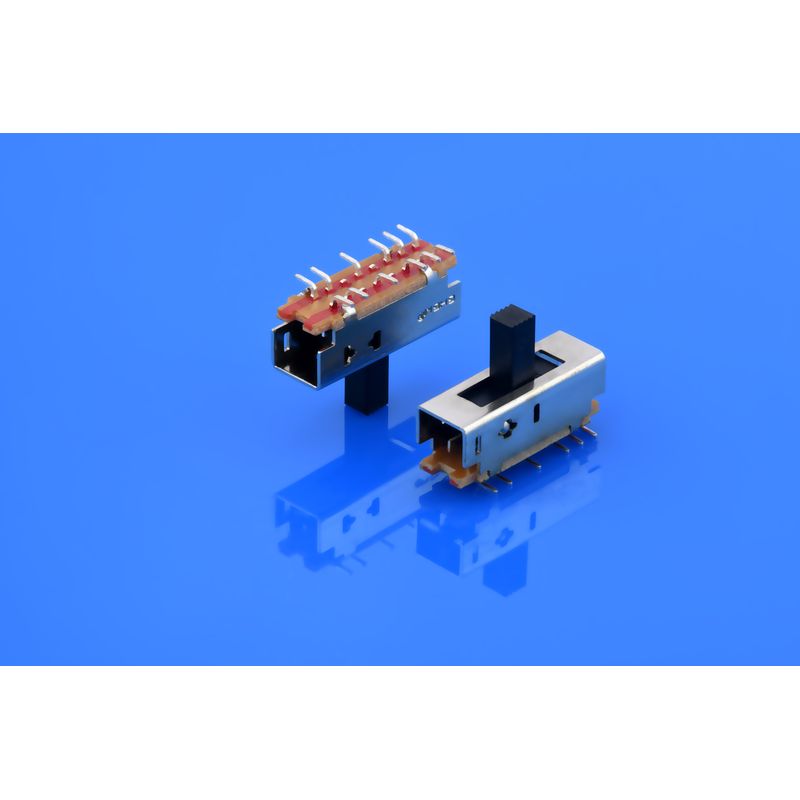

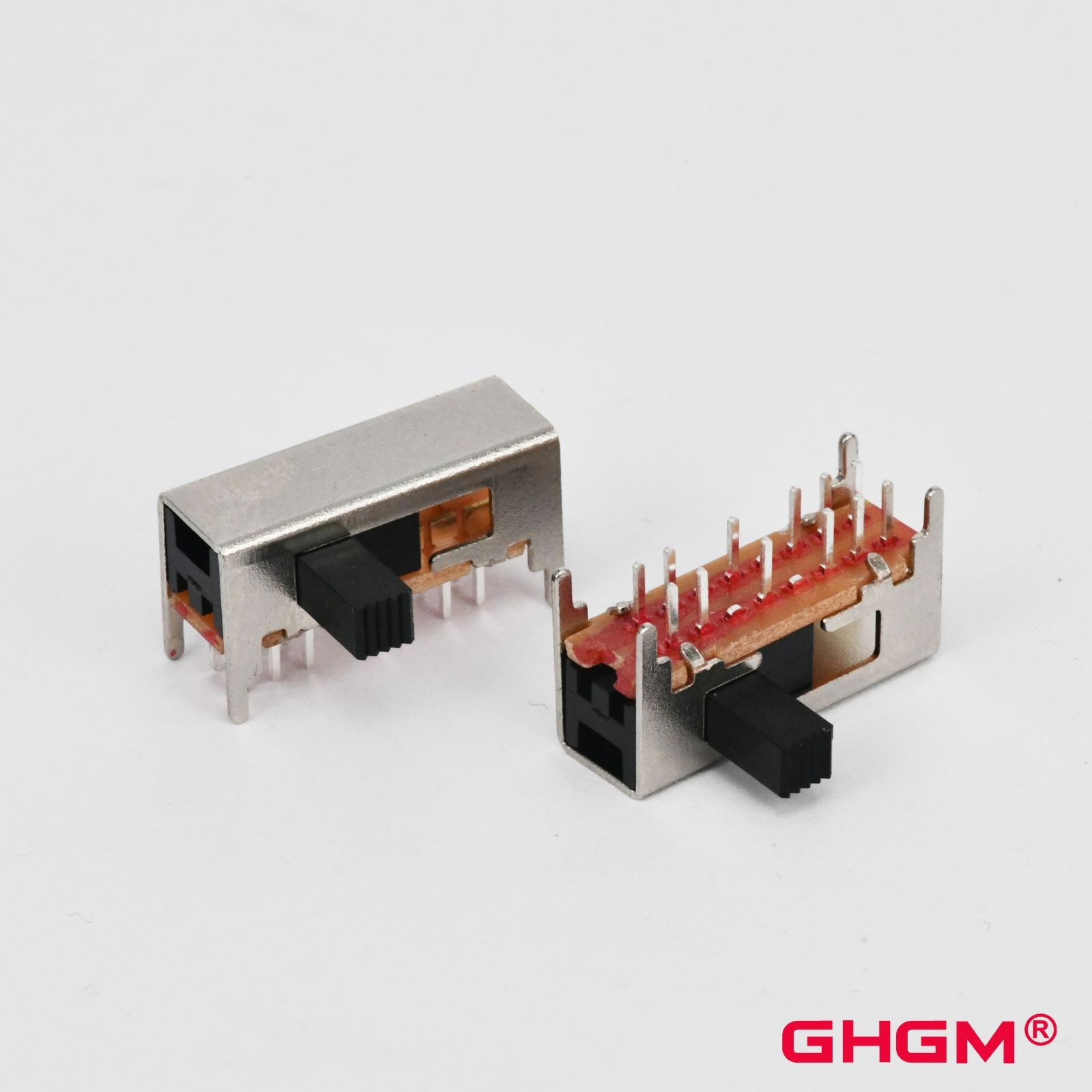

GH25D02 90° handle direction, Slide Switch Double Pole Double Throw (DPDT), 5 position, SMD/DIP slide switch

  • Brand:

    GHGM
  • Item no.:

    GH25D02
  • Application:

    Slide Switch
  • Material - Housing:

    BAKELITE
  • Material - Contact:

    COPPER ALLOY
  • Voltage Rating:

    50V
  • Current Rating:

    0.3A
  • Certificate:

    RoHS
  • Position:

    5 position
  • Handle direction:

    Horizontal

Product Description:

GH25D02 90° handle direction, Slide Switch Double Pole Double Throw (DPDT), 5 position, SMD/DIP slide switch


Property Details:

1.   Materials:

        1.1    Housing: LCP UL94 V-0

        1.2    Terminals: Copper Alloy

2.   Plating: Terminals: Matte-in

3.   Electrical performance:

        3.1    Voltage Rated: 150V (AC/DC)

        3.2    Current Rated: 0.3A

        3.3    Insulation Resistance: 100MΩ min

        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m

4.   Environmental Characteristic

        4.1    Storage temperature range: -10℃~+50℃ Half a year

        4.2    Operating temperature range: -40℃~+105℃

5.   RoHS compliant


Features and Advantages:

  • This series slide switches are designed for use in a wide variety of applications including portable tools, small appliances and floor care products.

  • They feature a high current rating of 6A at 250 Vac yet are still manufactured in a compact housing.


Application:

  • Various portable tools, small appliances and floor care products

  • Printed Circuit Board (PCB)


Certificate:

  • The quality control have the first priority in GHGM.

  • Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490

  • Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQC

  • Invention and Patents: US, Germany, Japan, China

GHGM certificate, qualtity control, invention and patents.jpg


Packing and Shipping:

  • We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.

  • Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.

  • These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

GHGM shipping and packing.jpg
