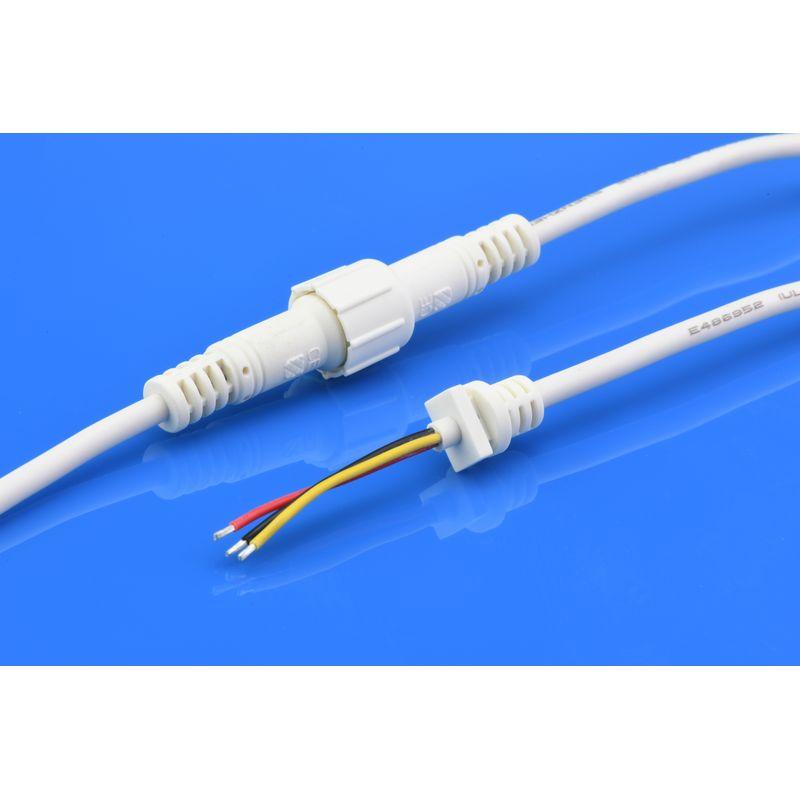

2-5 pins Waterproof Wire Connector for lighting, Electric Bike, etc

Product Description:G15 M2059, double row, smd Led light connector, straight style, Intelligent Lighting connector, pitch 2.0mm, 2-6 pin, Female mating connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 2–6 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbIntelligent Lighting connectorSmartLighting connectorAvailable: Tuya, Xiaomi, Ayla, Homekit platformCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GHPT025-QU Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：72.4*35.3*5.2mm2.   Wiring capacity：0.2-4 mm²(solid wire) / 0.2-2.5 mm²(Stranded wire), 26-12 AWG3.   Voltage/Current：IEC: 800V/24A, UL:600V/20A4.   Wiring quantity：45.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GHPT4-2L-PE Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：83.5*46*6.2mm2.   Wiring capacity：0.2-6mm²(solid wire) / 0.2-4mm²(Stranded wire), 24-10AWG3.   Voltage/Current：4.   Wiring quantity：45.   Number of poles：2 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:J0003 Metal LED light connector, copper LED bulb light connector, mating with copper alloy male connector J1001-J1007Property Details:1.   Materials: Copper Alloy2.   Plating: Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingAvailalbe Printed circuit board (PCB), thickness: 1.0-1.2mm Delivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:J0002, Led lighting connector, side entry, metal connector, wiring connectorProperty Details:1.   Materials: C519R-H2.   Plating:         Terminals: Nickel 50 u" Min Underplated                                TIN 80 u" Min on solder tail area3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 5A        3.3    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   Compliant cable: 22~24 AWG (Solid&stranded)                                            Strip Length: 3.5mm5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0806b plug-in spring wiring connector, Pin spacing 5.0 mm, Intuitive tool-free operation, adopts a plug-in spring wiring structure and a retractable operating handle, PCB terminal block, Push-in CAGE CLAMP®▪Single-solid, thin multi-strand wires and wires with cold-pressed ends can be inserted directly.▪Multiple wiring units can be kept open at the same time, making the connection of multi-core cables easier.▪The original design of wire inlet insertion into wire rib strips greatly reduces the possibility of failure of wires being easily dragged due to external forces or other factors, and the shell units are disengaged.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Intuitive tool-free operationAdopts a plug-in spring wiring structure and a retractable operating handleAvailable in 2-24 pole configurationsCompact terminal strips without push-buttonsPluggable terminal blockTermination/removal of fine-stranded conductors via push-buttons45° conductor entry angle provides easy, space-saving wiringCustom color combinationsApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:D0001, Led lighting connector, plugable Side entry connectorProperty Details:1.   Materials: Copper Alloy2.   Plating:         Terminals: Nickel 50 u" Min Underplated                                TIN 80 u" Min on solder tail area3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 5A        3.3    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   Complain cable: OD= φ1.5~2.0mm Max5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 1 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GHPT025-TW Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：60.5*35.3*5.2mm2.   Wiring capacity：0.2-4 mm²(solid wire) / 0.2-2.5 mm²(Stranded wire), 26-12 AWG3.   Voltage/Current：IEC: 800V/24A, UL:600V/20A4.   Wiring quantity：35.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
