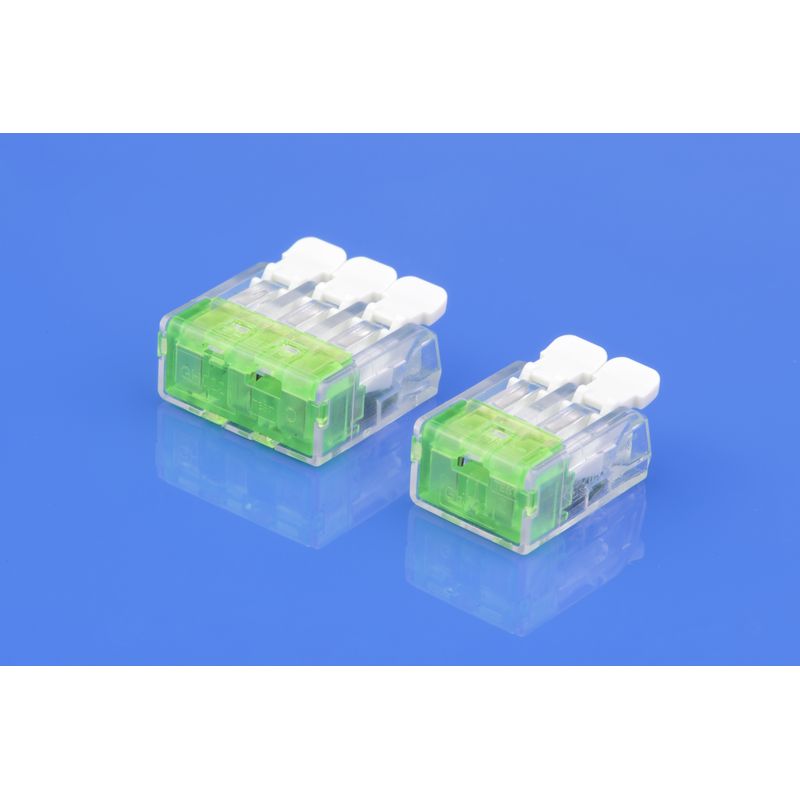

GH0221, lighting connector, push in connector, lever connectors for building wiring

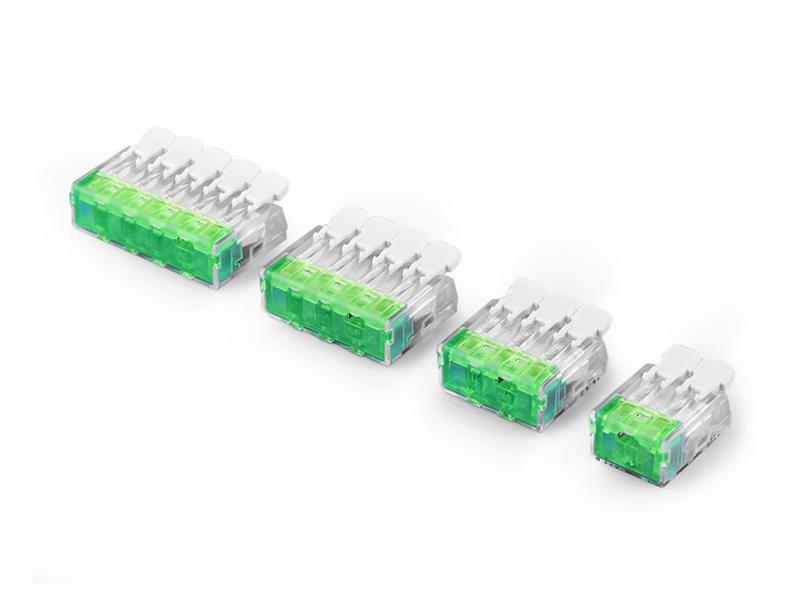

Product Description:GH0221A, lighting connector, push in connector, lever connectors for building wiringThe GHGM Lever Connector is an excellent choice for joining and insulating 2, 3, 4, 6 or 8 wires. These Lever connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 30A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 14-16mm        3.6    Cross section: 10~20AWG4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 3, 5 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0222, lighting connector, push in connector, lever connectors for building wiringThe GHGM Lever Connector is an excellent choice for joining and insulating 2, 4, 6 wire. These Lever connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 12-13mm        3.6    Cross section: 12~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 4, 6 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0223, lighting connector, push in connector, lever connectors for building wiringThe GHGM Lever Connector is an excellent choice for joining and insulating 2 wire. These Lever connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 12-13mm        3.6    Cross section: 12~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GHPT025-PE Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：48.6*35.3*5.2mm2.   Wiring capacity：0.2-4 mm²(solid wire) / 0.2-2.5 mm²(Stranded wire), 26-12 AWG3.   Voltage/Current：4.   Wiring quantity：25.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:M5009 Male connector, 2 Pin Needle Connector Adapter Male Double Insert For RGB LED Strip Light Tape LightProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Nickel 50u" min underplated                                             Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:F5008 low profile LED light connector, 2pin AWG24, pitch 2.5mm, wiring LED bulb light connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Nickel 50u" min underplated                                             Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GHPT4 Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：55.8*35.3*6.2mm2.   Wiring capacity：0.2-6mm²(solid wire) / 0.2-4mm²(Stranded wire), 26-10AWG3.   Voltage/Current：IEC: 800V/32A, UL:600V/30A4.   Wiring quantity：25.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:F0013, Led light connector, Intelligent Lighting connector, pitch 2.0mm, 2-6 pin, double row, Female mating connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 2–6 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbIntelligent Lighting connectorSmartLighting connectorAvailable: Tuya, Xiaomi, Ayla, Homekit platformCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
