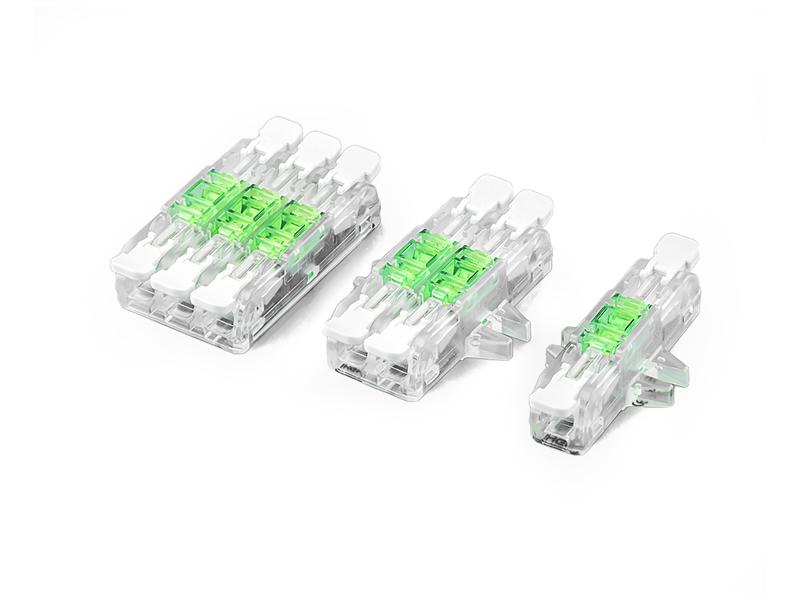

GH0222, lighting connector, push in connector, lever connectors for building wiring

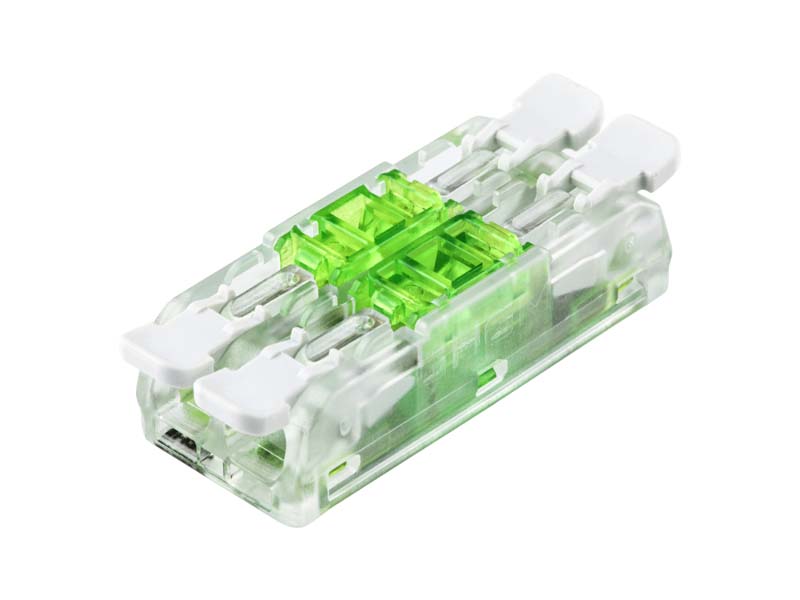

Product Description:GH0221A, lighting connector, push in connector, lever connectors for building wiringThe GHGM Lever Connector is an excellent choice for joining and insulating 2, 3, 4, 6 or 8 wires. These Lever connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 30A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 14-16mm        3.6    Cross section: 10~20AWG4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 3, 5 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0221, lighting connector, push in connector, lever connectors for building wiringThe GHGM Lever Connector is an excellent choice for joining and insulating 2, 3, 4, 6 or 8 wires. These Lever connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 10mm        3.6    Cross section: 14~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 3, 5 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

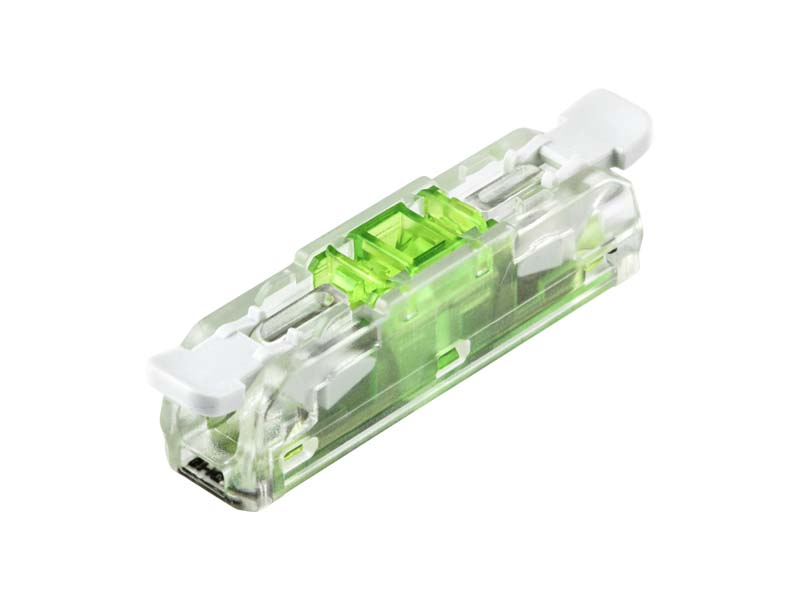

Product Description:GH0223, lighting connector, push in connector, lever connectors for building wiringThe GHGM Lever Connector is an excellent choice for joining and insulating 2 wire. These Lever connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 12-13mm        3.6    Cross section: 12~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0923 2-5 pin, LED Lighting Terminal Block, Strip Connector 923, UL VDE, push wire connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 16A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:The terminal module for power supply is used to connect lamps and other equipment. They are suitable for lighting, household appliances, etc., and can connect 0.75 to 2.5 mm2 single-strand, multi-strand and thin multi-strand wires. Various polar patches and clamps are availableVarious bottem type: T/J/flat bottom.Application:lighting, household appliances, etc.,Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0126 PCB Mount Terminal Block Connector Electronic Components Electronic Hobby KitThis 2 Pin/ 3 Pin Wire to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 5.0mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 10A.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 10A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowinghis connector can be used safely for current of up to 10A.Available in 2-24 pole configurationsApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:J0026, Led light connector, Side entry connector, wiring connectorProperty Details:1.   Materials: Copper alloy2.   Plating:        Terminals: Nickel 50 u" Min Underplated3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Contact Resistance: 60mΩ MAX. (Initial)                                                          100Ω MAX. (After life test)4.   Compliant cable: 18~22AWG (Solid&stranded)5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year       5.2    Operating temperature range: -40℃~+105℃6.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 1–3 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:J0006 Metal AWG24, Copper LED bulb light connector, LED light connectorProperty Details:1.   Materials: Copper Alloy2.   Plating: Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingAvailalbe Printed circuit board (PCB), thickness: 1.0-1.2mm Delivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:G20 M4024, Led light connector, vertical style, Intelligent Lighting connector, pitch 2.0mm, 3 pin, single row, Male mating connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 2–6 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbIntelligent Lighting connectorSmartLighting connectorAvailable: Tuya, Xiaomi, Ayla, Homekit platformCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
