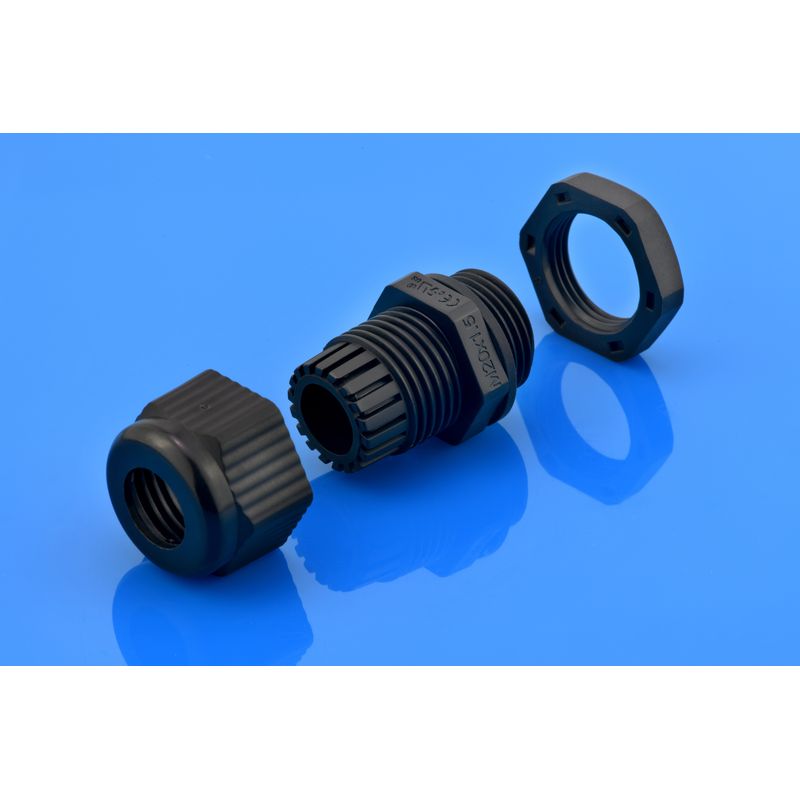

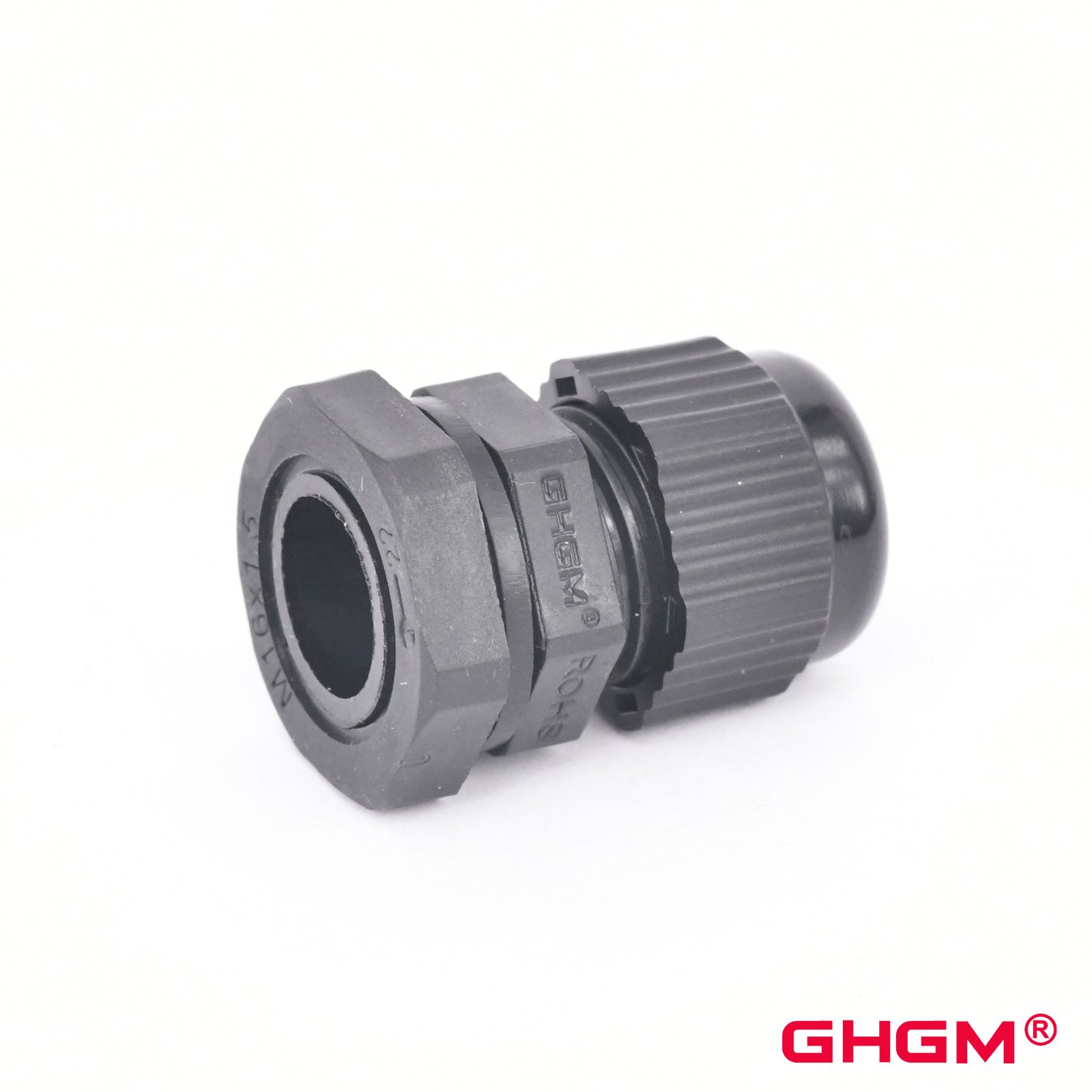

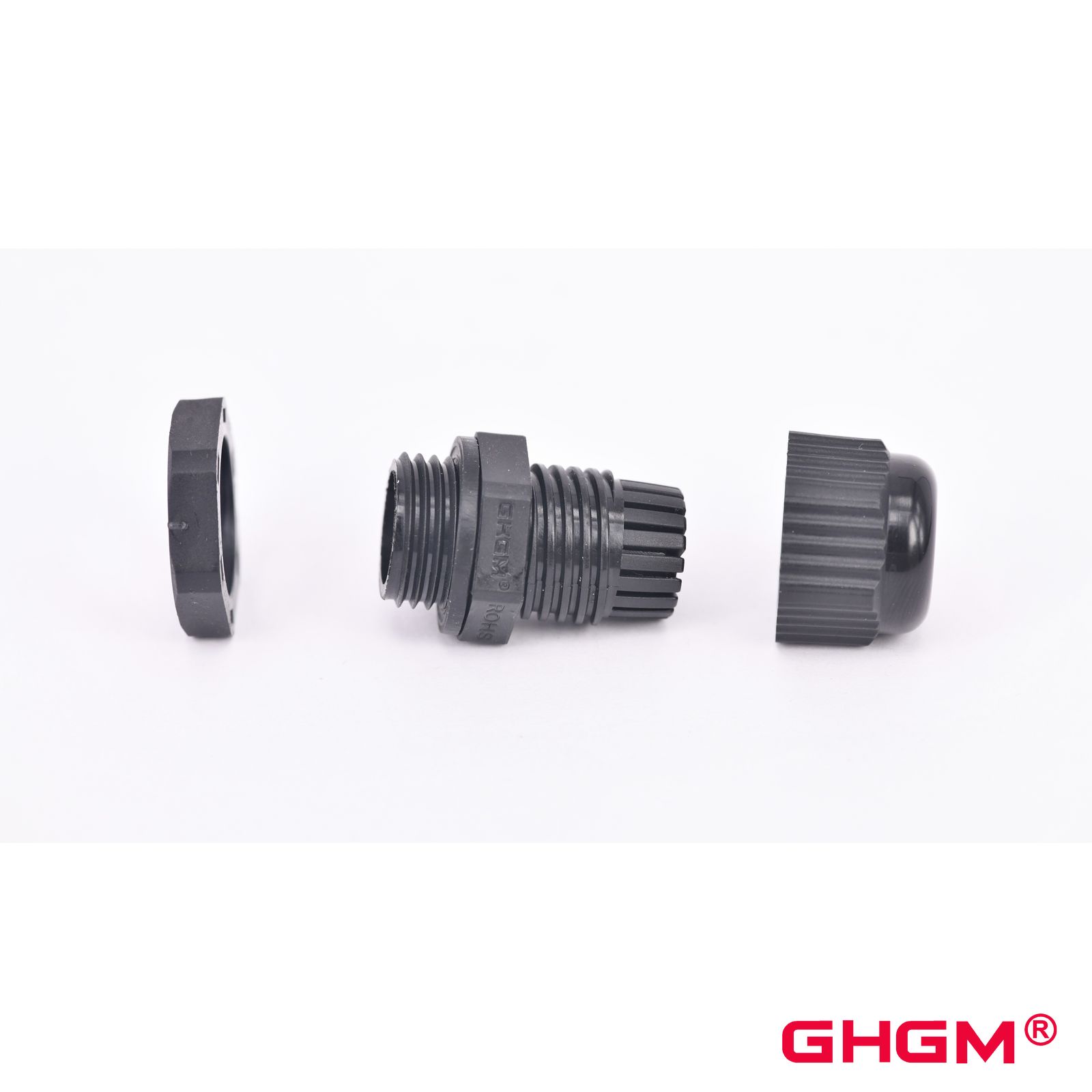

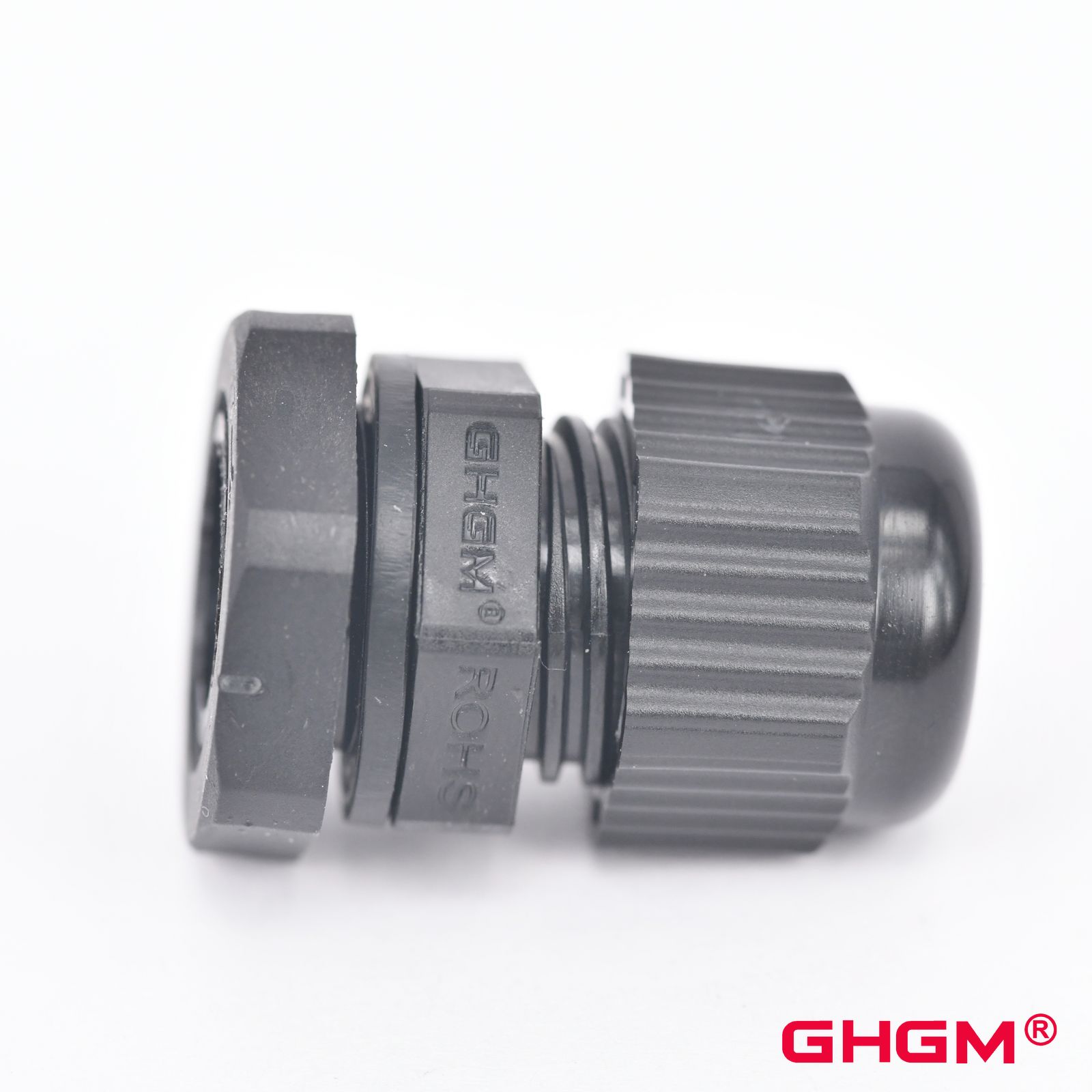

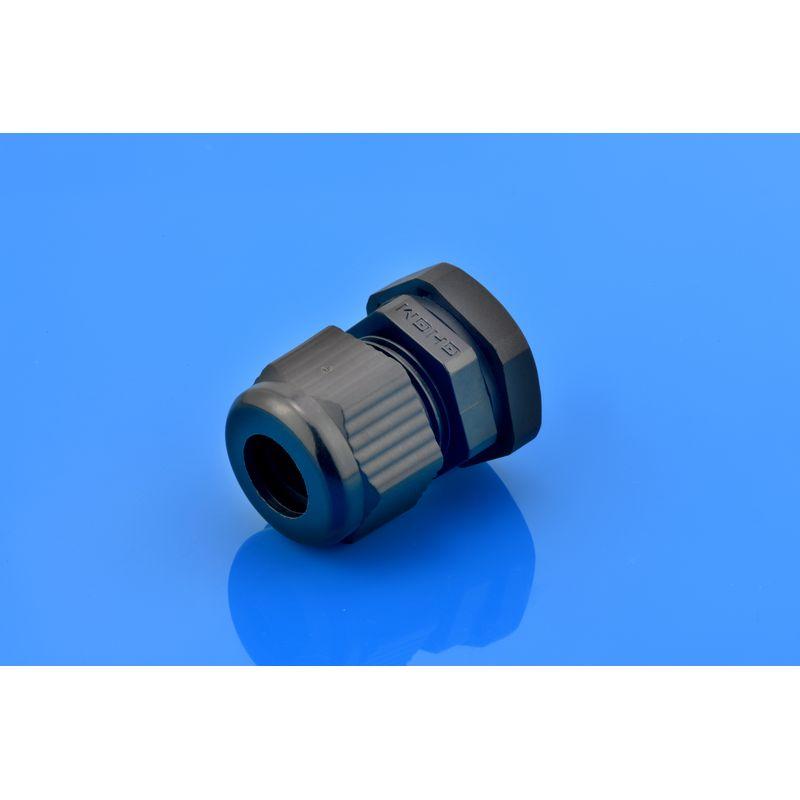

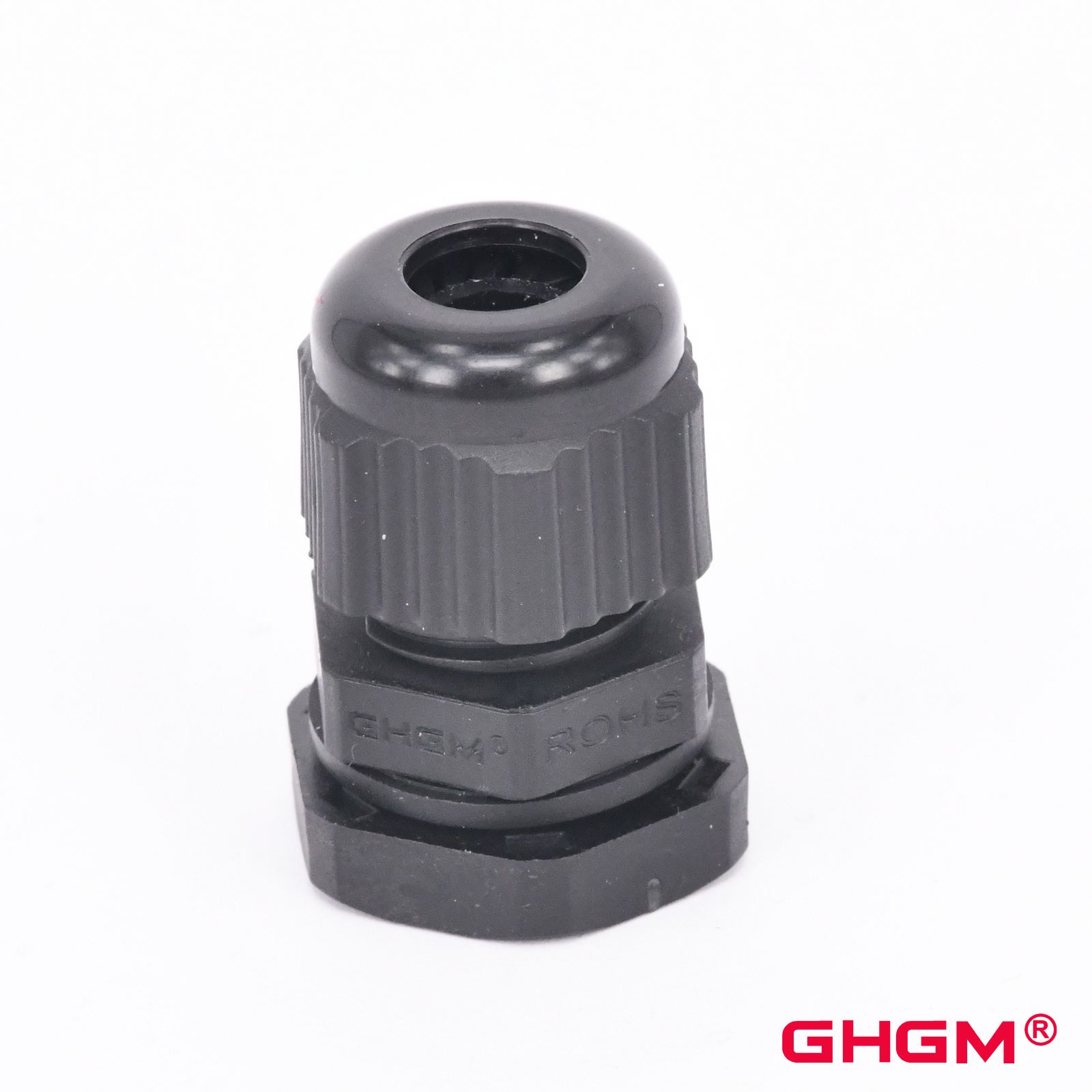

GH016 waterproof Cable gland Cable fixed head, IP68, M16, M18, M20

  • Brand:

    GHGM
  • Item no.:

    GH016
  • Application:

    Waterproof Connector
  • Material - Housing:

    PA66 UL94 V-0
  • Certificate:

    RoHS
  • Waterproof Rating:

    IP68

Product Description:

GH016 waterproof Cable gland Cable fixed head, IP68, M16, M18, M20


Property Details:

1.   Materials:

        1.1    Housing: PA66 UL94 V-0

        1.2    Water resistent: Rubber

2.   RoHS compliant

3.   Cable range:

        A    2-6mm

        B    4-8mm

        B    5-10mm

4.   Environmental Characteristic

        4.1    Storage temperature range: -10℃~+50℃ Half a year

        4.2    Operating temperature range: -40℃~+100℃


Features and Advantages:

  • It can be applied in different conditions with temperature range -40 ° C ~ 85 ° C.

  • Black finish.


Application:

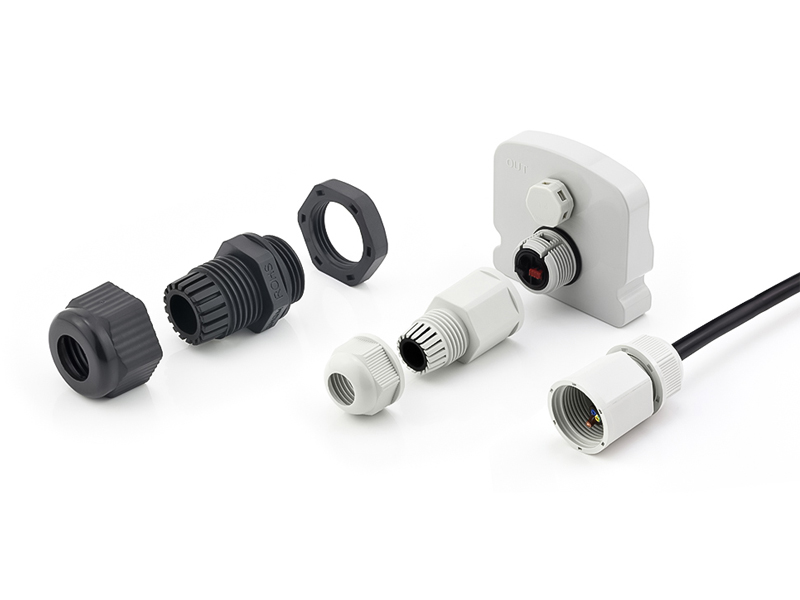

  • Cable Glands are widely used to connect and fasten electrical cable ends to equipment and devices.


Certificate:

  • The quality control have the first priority in GHGM.

  • Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490

  • Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQC

  • Invention and Patents: US, Germany, Japan, China

GHGM certificate, qualtity control, invention and patents.jpg


Packing and Shipping:

  • We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.

  • Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.

  • These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

GHGM shipping and packing.jpg
