Pitch 0.8mm Floating Board To Board Multiple Board Connector Supplier

  • Brand:

    GHGM
  • Item no.:

    GH8003&GH8004
  • Goods stock:

    1000
  • Application:

    Board to Board connector
  • Pitch:

    0.8mm
  • Pin:

    2*20-2*60 pin
  • Material - Housing:

    LCP UL94 V-0
  • Material - Contact:

    COPPER ALLOY
  • Voltage Rating:

    50V
  • Current Rating:

    0.5A
  • Certificate:

    RoHS

Product Description:

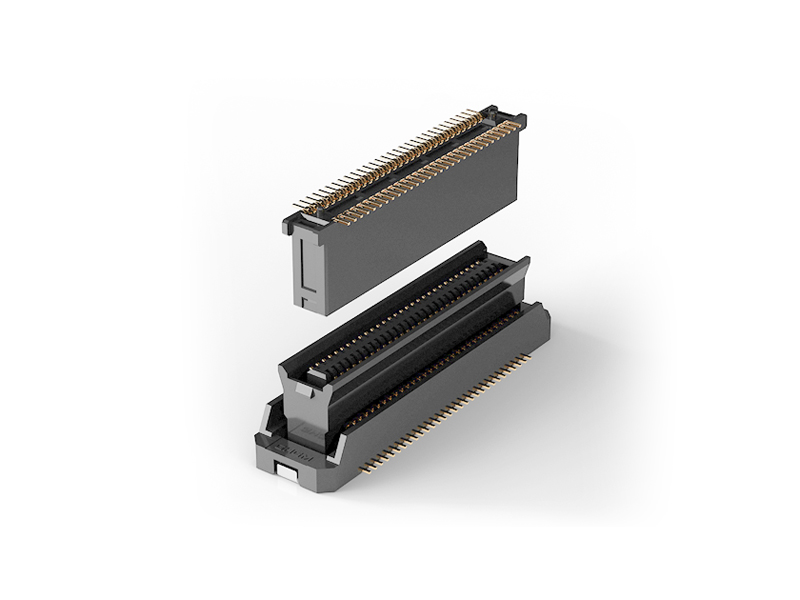

GH8003&GH8004 Pitch 0.8mm, floating board to board connector, multiple board connector


Property Details:

1.   Materials:

        1.1    Housing: LCP UL94 V-0

        1.2    Terminals: Copper Alloy

2.   Plating: Terminals: Gold flash

3.   Electrical performance:

        3.1    Rated: Signal Pin, 50V/0.5A, Power Pin, 200V/50A

        3.2    Insulation Resistance:  Signal Pin, 100MΩ min(Min)

                                                                Power Pin, 1000MΩ min(Min)

        3.3    Dielectric withstanding voltage:

                                                    Signal Pin, 150VAC R.M.S/1m

                                                    Power Pin, 600VAC R.M.S/1m

4.   Environmental Characteristic

        4.1    Storage temperature range: -10℃~+50℃ Half a year

        4.2    Operating temperature range: -40℃~+105℃

5.   RoHS compliant


Features and Advantages:

  • As many devices has evolved to become more compact and high-functioning. The “floating connector” has been contributing to reduce the stress which occurs to connecting parts when screwing fastening to the PCB, as well as when having multiple connectors mounted on one single PCB.

  • GHGM floating connector series has started from 0.5mm pitch, then it has progressed to 0.635mm, 0.8mm, and 0.4mm pitch connector.


Application:

  • Floating connectors have been used in wide range of applications from car infotainment systems for automotive applications as well as medical, manufacturing, regardless of industrial or consumer applications. Abundant options for number of pins and height variations make it possible for the floating connector to be flexible to use regardless of application.


Certificate:

  • The quality control have the first priority in GHGM.

  • Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490

  • Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQC

  • Invention and Patents: US, Germany, Japan, China

GHGM certificate, qualtity control, invention and patents.jpg


Packing and Shipping:

  • We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.

  • Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.

  • These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

GHGM shipping and packing.jpg
