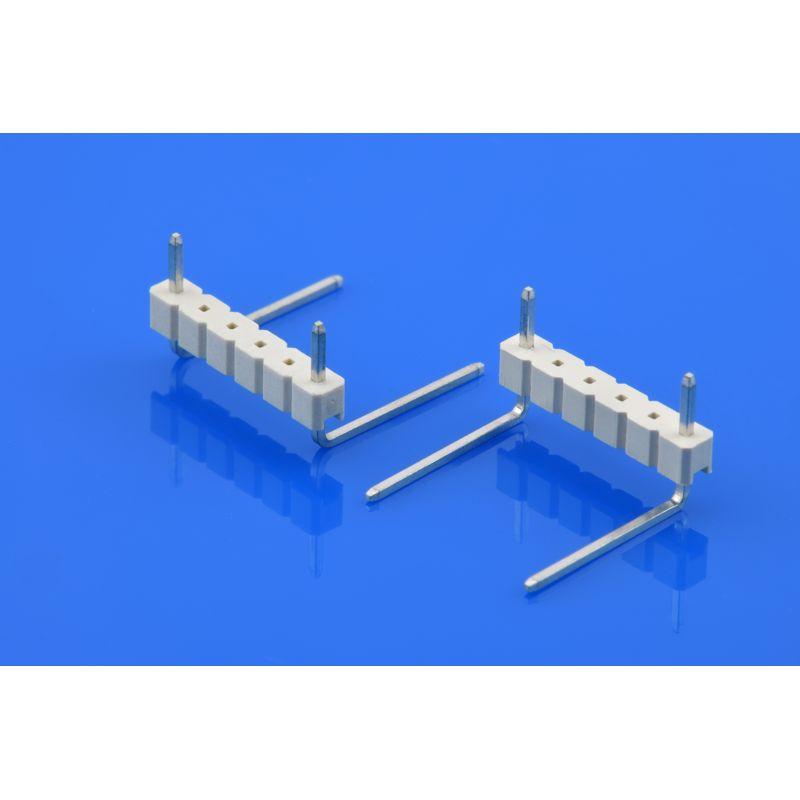

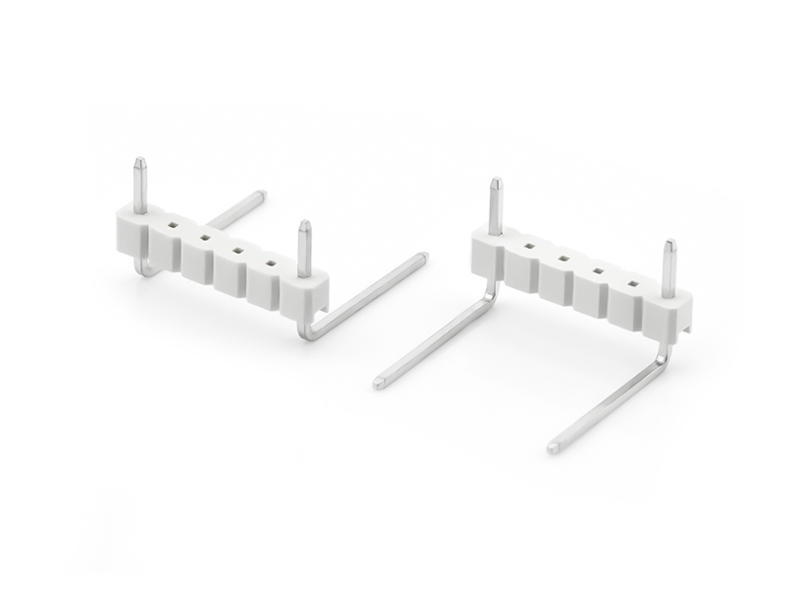

M0009, 2 pin Spotlight Connector, pitch 10mm, right angle outdoor connector, indoor connector

  • Brand:

    GHGM
  • Item no.:

    M0009
  • Application:

    Lighting Connector
  • Pin:

    2pin
  • Material - Housing:

    LCP UL94 V-0
  • Material - Contact:

    COPPER ALLOY
  • Voltage Rating:

    275V
  • Current Rating:

    1A
  • Certificate:

    RoHS

Product Description:

M0009, 2 pin Spotlight Connector, pitch 10mm, right angle outdoor connector, indoor connector


Property Details:

1.   Materials:

        1.1    Housing: LCP UL94 V-0

        1.2    Terminals: Copper Alloy

2.   Plating: Terminals: Matte-in

3.   Electrical performance:

        3.1    Voltage Rated: 275V (AC/DC)

        3.2    Current Rated: 1A

        3.3    Insulation Resistance: 100MΩ min

        3.4    Dielectric withstanding voltage: 500V AC/1m

        3.5    Contact Resistance: 60mΩ MAX. (Initial)

                                                            100Ω MAX. (After life test)

4.   Environmental Characteristic

        4.1    Storage temperature range: -10℃~+50℃ Half a year

        4.2    Operating temperature range: -40℃~+105℃

5.   RoHS compliant


Features and Advantages:

  • Low profle minimizes on-board shadowing

  • Terminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costs

  • Delivery in tape-and-reel packaging for full integration into DIP soldering process

  • Potential for significant savings via automated pick-and-place assembly


Application:

  • LED spot light


Certificate:

  • The quality control have the first priority in GHGM.

  • Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490

  • Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQC

  • Invention and Patents: US, Germany, Japan, China

GHGM certificate, qualtity control, invention and patents.jpg


Packing and Shipping:

  • We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.

  • Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.

  • These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

GHGM shipping and packing.jpg
