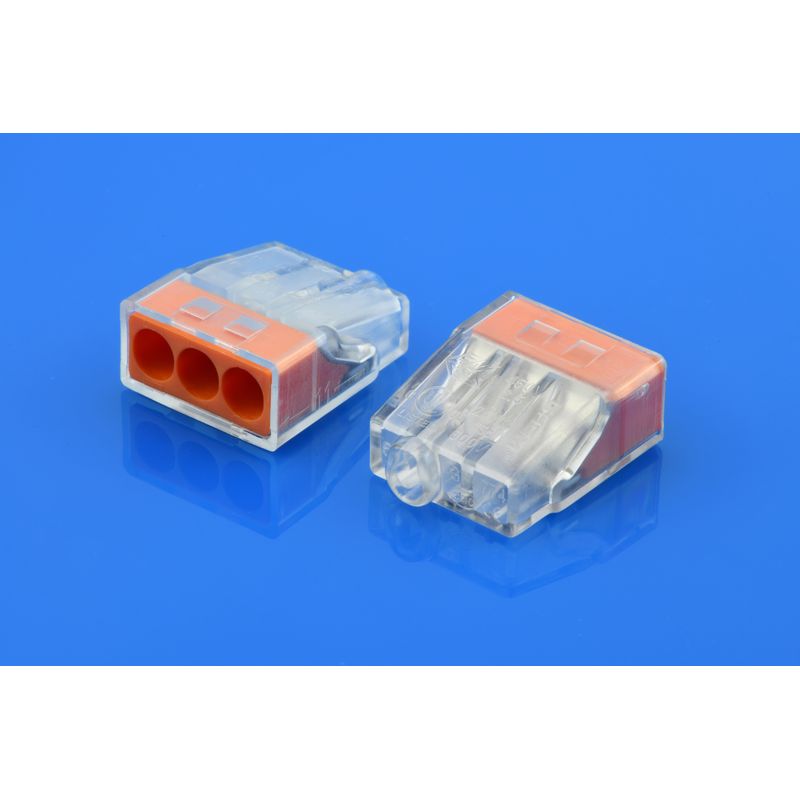

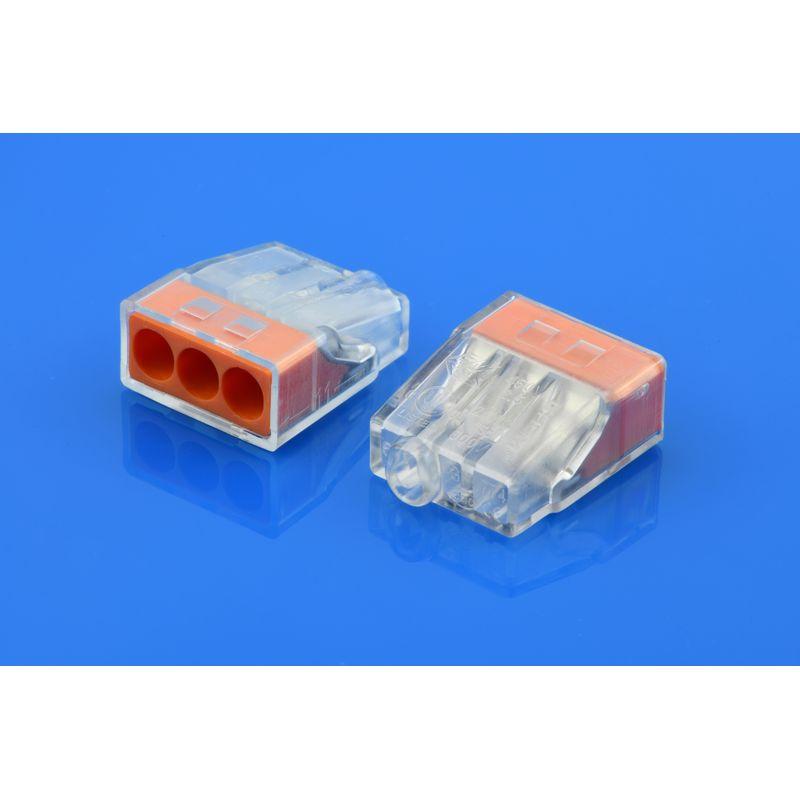

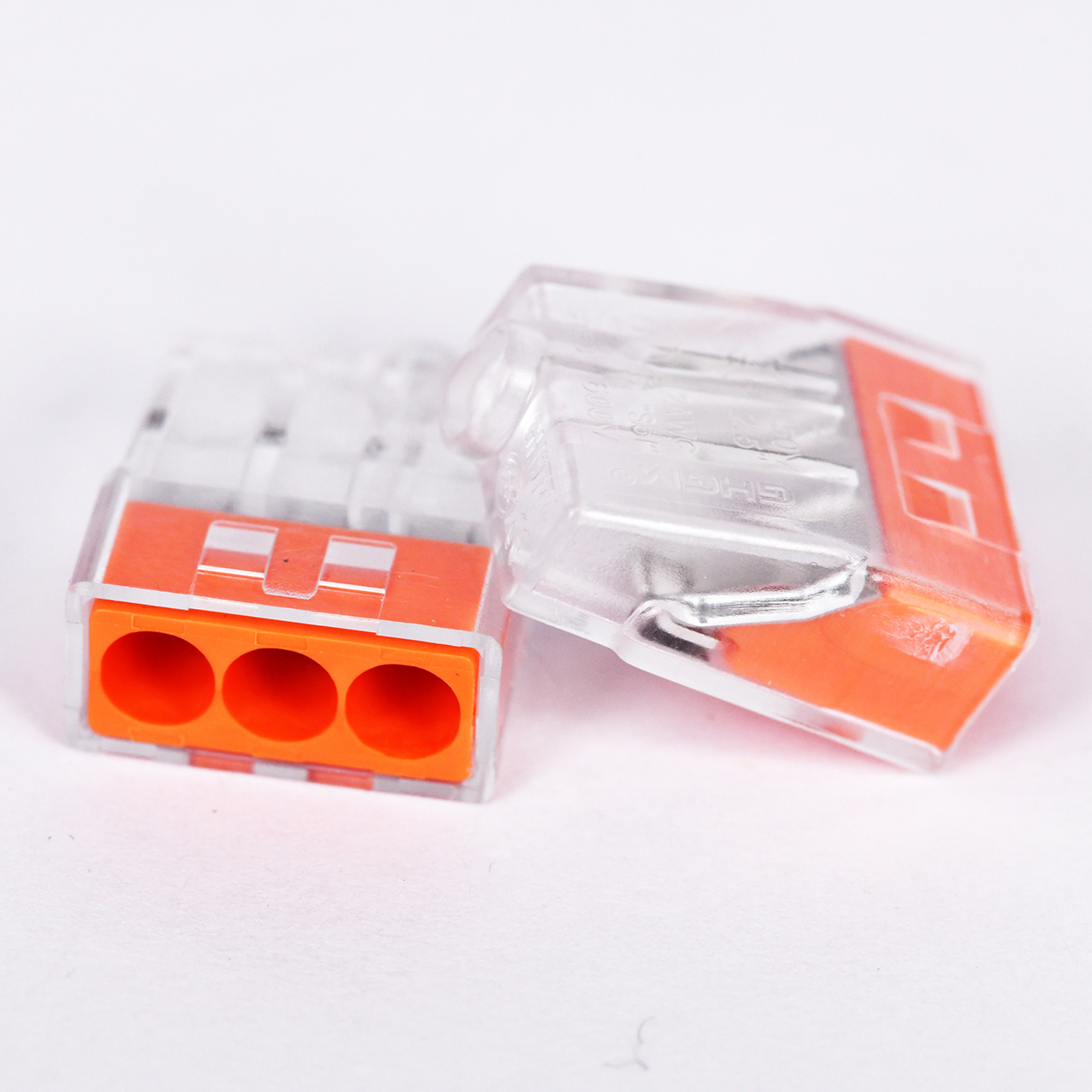

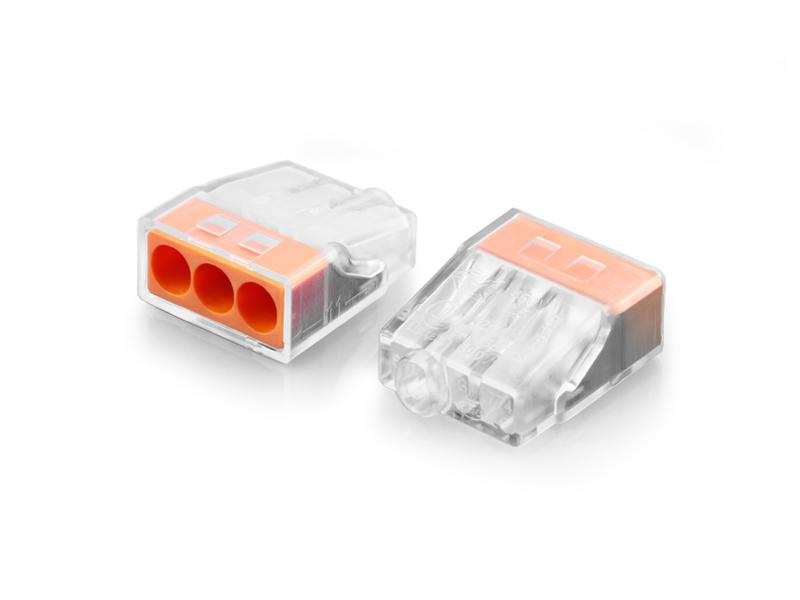

GH0774-3 Pole, lighting connector, pitch 4.0mm push in connector, 3 pin push in wire connector

Product Description:GH0773-2 Pole, lighting connector, pitch 4.0mm push in connector, 4 pin push in wire connectorThe GHGM Push-In Wire Connector Set is an excellent choice for joining and insulating 2, 3, 4, 6 or 8 wires. These push-in wire connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 10mm        3.6    Cross section: 14~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 3, 4, 6 or 8 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0773-4 Pole, lighting connector, push in connector, 4 pin push in wire connectorThe GHGM Push-In Wire Connector Set is an excellent choice for joining and insulating 2, 3, 4, 6 or 8 wires. These push-in wire connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 10mm        3.6    Cross section: 14~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 3, 4, 6 or 8 wirbHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0773-6 Pole, lighting connector, pitch 4.0mm push in connector, 6 pin push in wire connectorThe GHGM Push-In Wire Connector Set is an excellent choice for joining and insulating 2, 3, 4, 6 or 8 wires. These push-in wire connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 10mm        3.6    Cross section: 14~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 3, 4, 6 or 8 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0773-8 Pole, lighting connector, pitch 4.0mm push in connector, 8 pin push in wire connectorThe GHGM Push-In Wire Connector Set is an excellent choice for joining and insulating 2, 3, 4, 6 or 8 wires. These push-in wire connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 10mm        3.6    Cross section: 14~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 3, 4, 6 or 8 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:K0055&K0056 Down light connector Luminaire Disconnect, safely disconnecting hot and neutral ballast wiringProperty Details:1.   Materials:        1.1    Housing: PA66 UL94 V-0        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in 50u" min3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 3A        3.3    Insulation Resistance: 100MΩ min        3.4    Contact Resistance: 60mΩ MAX. (Initial)                                                             100Ω MAX. (After life test)        3.5    withstanding voltage: 2200V AC R.M.S/1m        3.6    Strip Length: 8-9mm        3.7    Cross section:18AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Down light connectorThe Power Plug features patented GHGM push-in technology that quickly locks wires in place.It helps reduce electrical shock hazard during ballast replacement by safely disconnecting hot and neutral ballast wiring while offering additional safety since both halves meet UL and CSA finger-probe safety requirements. Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:G15 M2059, double row, smd Led light connector, straight style, Intelligent Lighting connector, pitch 2.0mm, 2-6 pin, Female mating connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 2–6 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbIntelligent Lighting connectorSmartLighting connectorAvailable: Tuya, Xiaomi, Ayla, Homekit platformCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:G15 M0051, Led light connector, straight style, Intelligent Lighting connector, pitch 2.0mm, 2-6 pin, double row, Male mating connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 2–6 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbIntelligent Lighting connectorSmartLighting connectorAvailable: Tuya, Xiaomi, Ayla, Homekit platformCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GHPT4-TW Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：66.5*35.3*6.2mm2.   Wiring capacity：0.2-6mm²(solid wire) / 0.2-4mm²(Stranded wire), 24-10AWG3.   Voltage/Current：IEC: 800V/32A, UL:600V/30A4.   Wiring quantity：35.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
