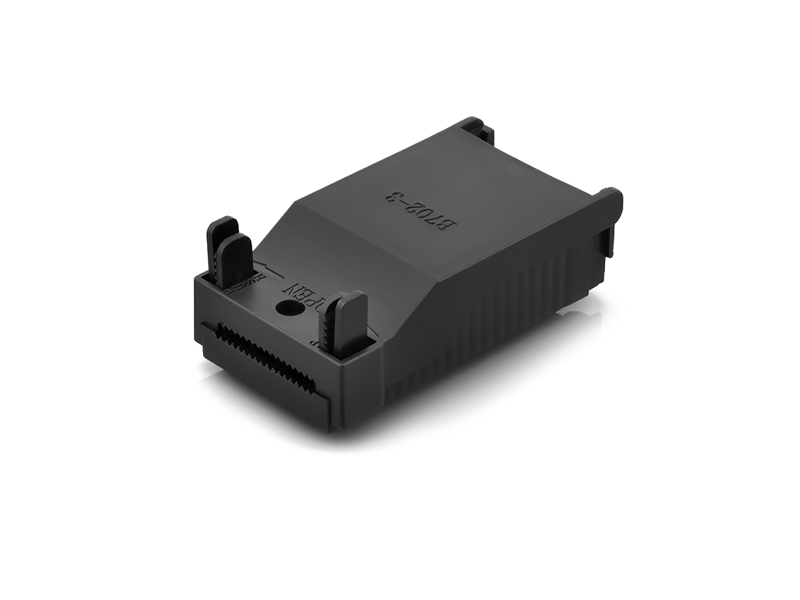

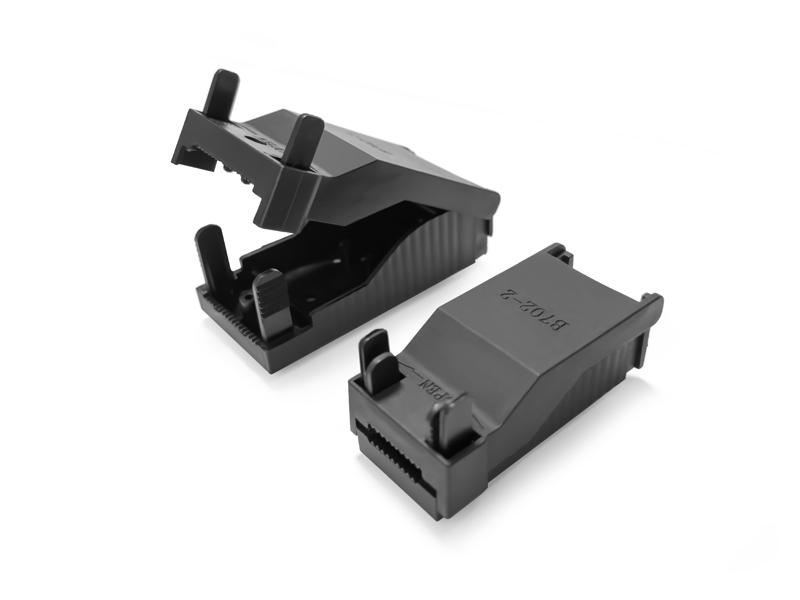

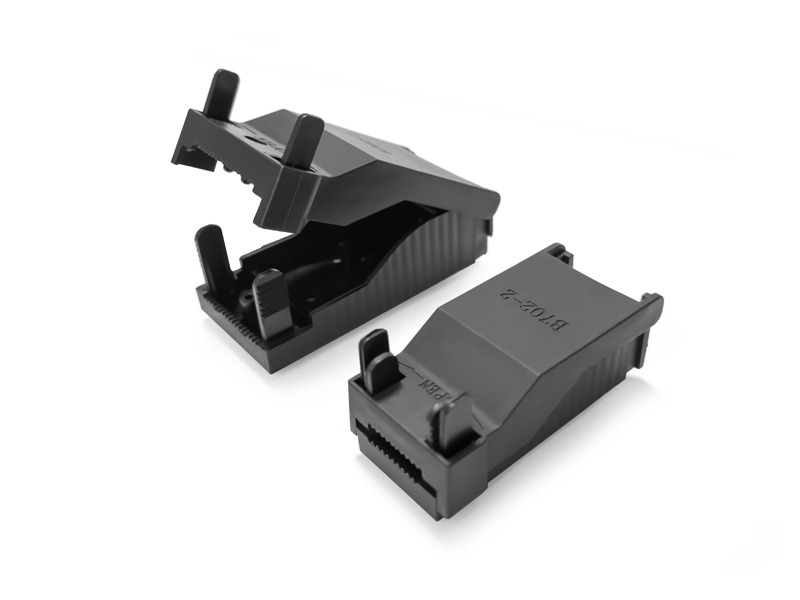

GH0702, Connector box, mating with GH0923 2-5 pin

  • Brand:

    GHGM
  • Item no.:

    GH0702
  • Application:

    LED bulb connector
  • Pitch:

    10mm
  • Material - Housing:

    PP UL94 V-2
  • Certificate:

    RoHS

Product Description:

GH0702, Connector box, mating with GH0923 2-5 pin


Property Details:

1.   Materials:

        1.1    Housing: LCP UL94 V-0

2.   Environmental Characteristic

        2.1    Storage temperature range: -10℃~+50℃ Half a year

        2.2    Operating temperature range: -40℃~+105℃

3.   RoHS compliant


Features and Advantages:

  • Suitable for different GH0923 bottem type: T/J/flat bottom.


Application:

  • lighting, household appliances, etc.,


Certificate:

  • The quality control have the first priority in GHGM.

  • Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490

  • Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQC

  • Invention and Patents: US, Germany, Japan, China

GHGM certificate, qualtity control, invention and patents.jpg


Packing and Shipping:

  • We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.

  • Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.

  • These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

GHGM shipping and packing.jpg
