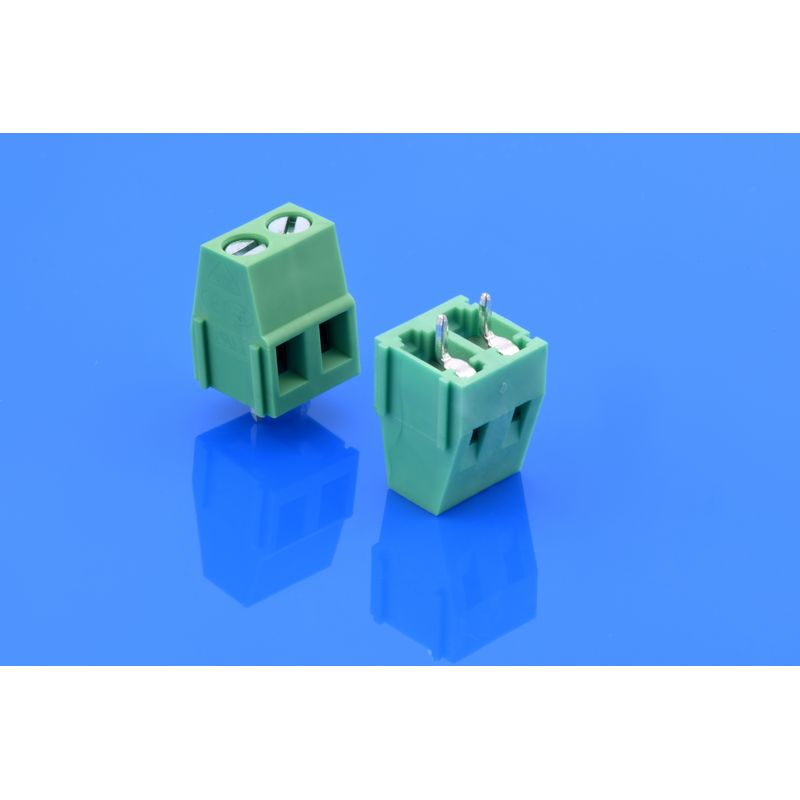

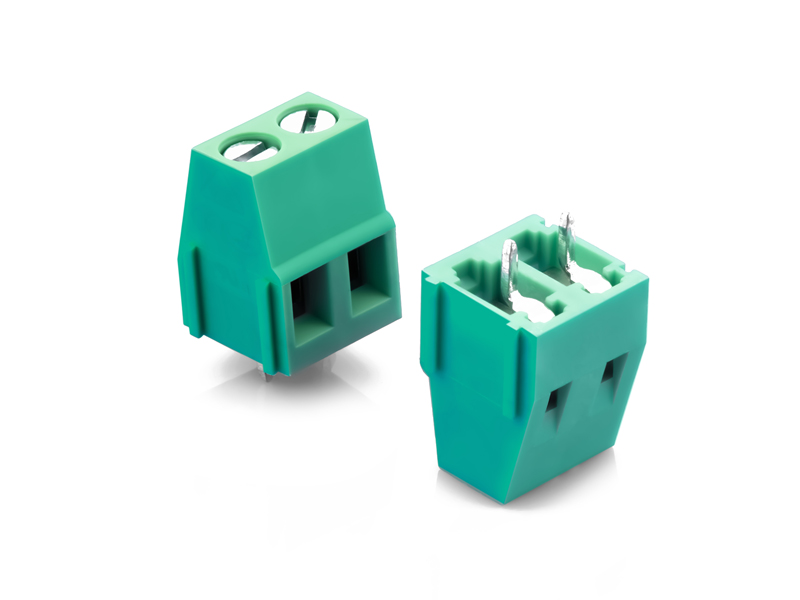

GH0128 10A, high current, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby Kit

  • Brand:

    GHGM
  • Item no.:

    GH0128
  • Goods stock:

    1000
  • Application:

    Lighting Connector
  • Pitch:

    5.0mm
  • Pin:

    2-24pin
  • Material - Housing:

    LCP UL94 V-0
  • Material - Contact:

    COPPER ALLOY
  • Voltage Rating:

    300V
  • Current Rating:

    20A
  • Wire AWG:

    12-30AWG
  • Certificate:

    UL

Product Description:

GH0128 10A, high current, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby Kit


This wiree to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 5.0mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 20A.


Property Details:

1.   Materials:

        1.1    Housing: LCP UL94 V-0

        1.2    Terminals: Copper Alloy

2.   Plating: Terminals: Matte-in

3.   Electrical performance:

        3.1    Voltage Rated: 300V (AC/DC)

        3.2    Current Rated: 20A

        3.3    Insulation Resistance: 100MΩ min

        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m

4.   Environmental Characteristic

        4.1    Storage temperature range: -10℃~+50℃ Half a year

        4.2    Operating temperature range: -40℃~+105℃

5.   RoHS compliant


Features and Advantages:

  • Low profle minimizes on-board shadowing

  • his connector can be used safely for current of up to 20A.

  • Available in 2-24 pole configurations


Application:

  • Power Supply connector

  • Printed Circuit Board (PCB)


Certificate:

  • The quality control have the first priority in GHGM.

  • Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490

  • Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQC

  • Invention and Patents: US, Germany, Japan, China

GHGM certificate, qualtity control, invention and patents.jpg


Packing and Shipping:

  • We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.

  • Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.

  • These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

GHGM shipping and packing.jpg
