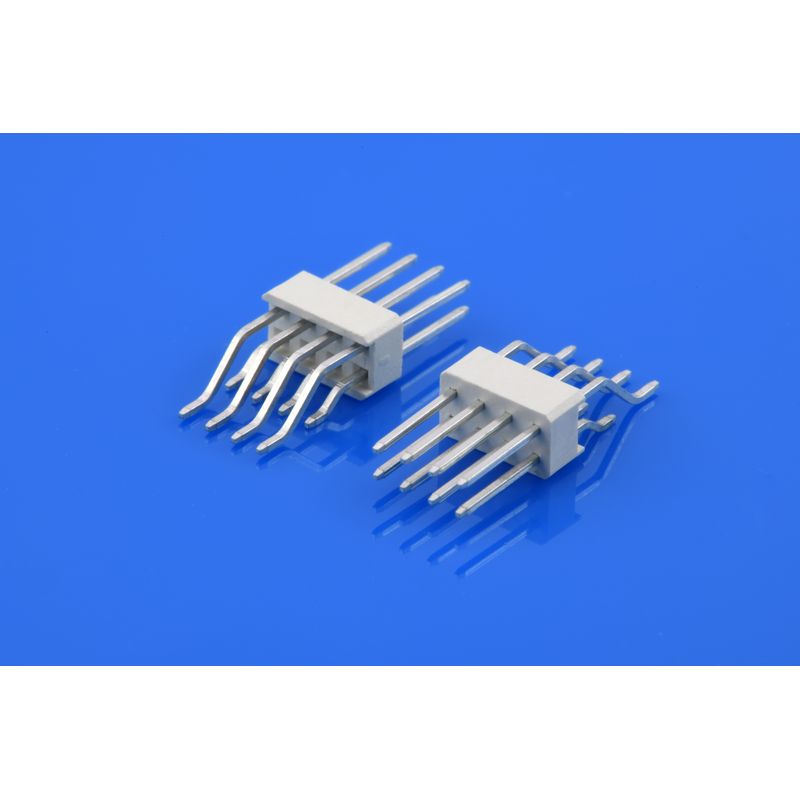

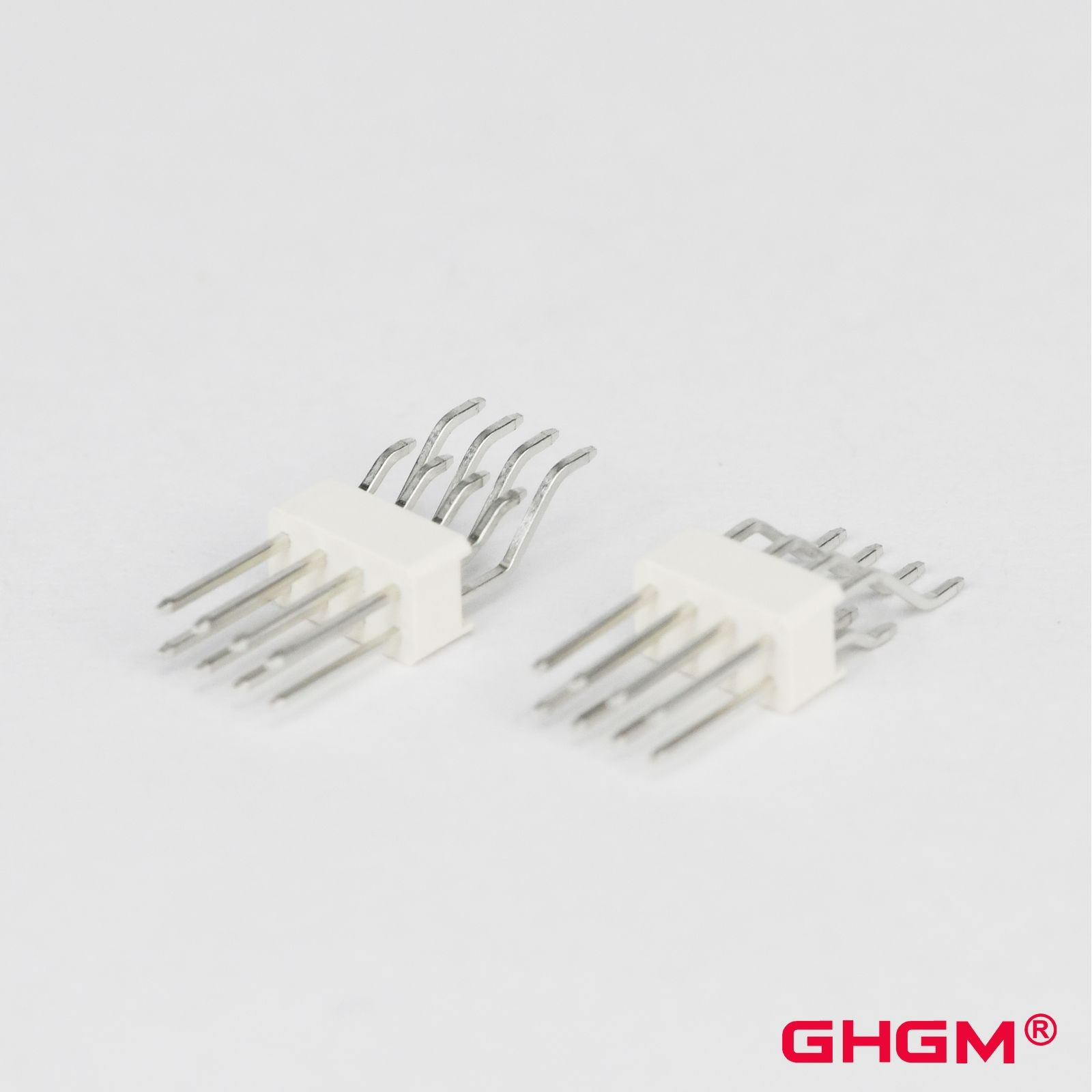

G15 M2028, double row, right angle, SMD Led light connector, straight style, Intelligent Lighting connector, pitch 2.0mm, 2-6 pin, Female mating connector

  • Brand:

    GHGM
  • Item no.:

    M2028
  • Application:

    LED bulb connector
  • Pitch:

    1.5mm
  • Pin:

    2*2 - 2*6 pin
  • Material - Housing:

    LCP UL94 V-0
  • Material - Contact:

    COPPER ALLOY
  • Voltage Rating:

    275V
  • Current Rating:

    1A
  • Certificate:

    RoHS

Product Description:

G15 M2028, double row, right angle, SMD Led light connector, straight style, Intelligent Lighting connector, pitch 2.0mm, 2-6 pin, Female mating connector


Property Details:

1.   Materials:

        1.1    Housing: LCP UL94 V-0

        1.2    Terminals: Copper Alloy

2.   Plating: Terminals: Matte-in

3.   Electrical performance:

        3.1    Voltage Rated: 275V (AC/DC)

        3.2    Current Rated: 1A

        3.3    Insulation Resistance: 100MΩ min

        3.4    Dielectric withstanding voltage: 500V AC/1m

        3.5    Contact Resistance: 60mΩ MAX. (Initial)

                                                            100Ω MAX. (After life test)

4.   Environmental Characteristic

        4.1    Storage temperature range: -10℃~+50℃ Half a year

        4.2    Operating temperature range: -40℃~+105℃

5.   RoHS compliant


Features and Advantages:

  • Low profle minimizes on-board shadowing

  • Terminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costs

  • Available in 2–6 pole configurations

  • Delivery in tape-and-reel packaging for full integration into SMT soldering process

  • Potential for significant savings via automated pick-and-place assembly


Application:

  • LED light bulb

  • Intelligent Lighting connector

  • SmartLighting connector

  • Available: Tuya, Xiaomi, Ayla, Homekit platform


Certificate:

  • The quality control have the first priority in GHGM.

  • Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490

  • Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQC

  • Invention and Patents: US, Germany, Japan, China

GHGM certificate, qualtity control, invention and patents.jpg


Packing and Shipping:

  • We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.

  • Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.

  • These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

GHGM shipping and packing.jpg


Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
G15 F2004 Pitch 1.5mm Intelligent Light Connector, smart light connector, female connector
G15 F2004, Led light connector, vertical style, Intelligent Lighting connector, pitch 2.0mm, 2-6 pin, double row, Male mating connector
Product Description:G15 F2004, Led light connector, vertical style, Intelligent Lighting connector, pitch 2.0mm, 2-6 pin, double row, Male mating connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 2–6 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbIntelligent Lighting connectorSmartLighting connectorAvailable: Tuya, Xiaomi, Ayla, Homekit platformCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
G15 M0051 Pitch 1.5mm Straight Needle Male connector, Intelligent Light Connector, smart light connector, male connector
G15 M0051, Led light connector, straight style, Intelligent Lighting connector, pitch 2.0mm, 2-6 pin, double row, Male mating connector
Product Description:G15 M0051, Led light connector, straight style, Intelligent Lighting connector, pitch 2.0mm, 2-6 pin, double row, Male mating connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 2–6 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbIntelligent Lighting connectorSmartLighting connectorAvailable: Tuya, Xiaomi, Ayla, Homekit platformCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

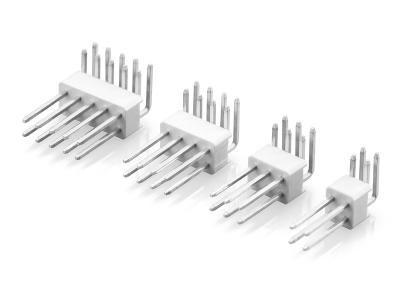

G15 M2012 Pitch 1.5mm Right Angle Needle Male connector, Intelligent Light Connector, smart light connector, male connector
G15 M2012, double row, right angle, dip Led light connector, straight style, Intelligent Lighting connector, pitch 2.0mm, 2-6 pin, Female mating connector
Product Description:G15 M2012, double row, right angle, dip Led light connector, straight style, Intelligent Lighting connector, pitch 2.0mm, 2-6 pin, Female mating connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 2–6 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbIntelligent Lighting connectorSmartLighting connectorAvailable: Tuya, Xiaomi, Ayla, Homekit platformCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

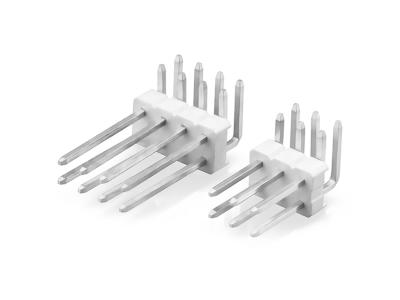

G15 M2059 Pitch 1.5mm Right Angle Needle Male connector, Intelligent Light Connector, smart light connector, male connector
G15 M2059, double row, smd Led light connector, straight style, Intelligent Lighting connector, pitch 2.0mm, 2-6 pin, Female mating connector
Product Description:G15 M2059, double row, smd Led light connector, straight style, Intelligent Lighting connector, pitch 2.0mm, 2-6 pin, Female mating connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsAvailable in 2–6 pole configurationsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbIntelligent Lighting connectorSmartLighting connectorAvailable: Tuya, Xiaomi, Ayla, Homekit platformCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

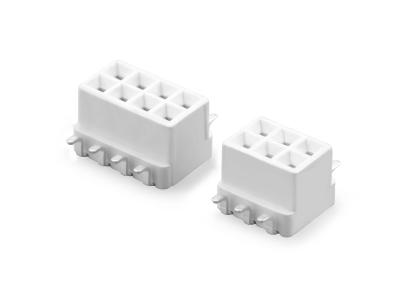

G20 F0013 Pitch 2.0mm Intelligent Light Connector, smart light connector, female connector
