Item no.:
F5028Application:
LED bulb connectorMaterial - Contact:
COPPER ALLOYVoltage Rating:
275VCurrent Rating:
1AWire AWG:
20AWGProduct Description:

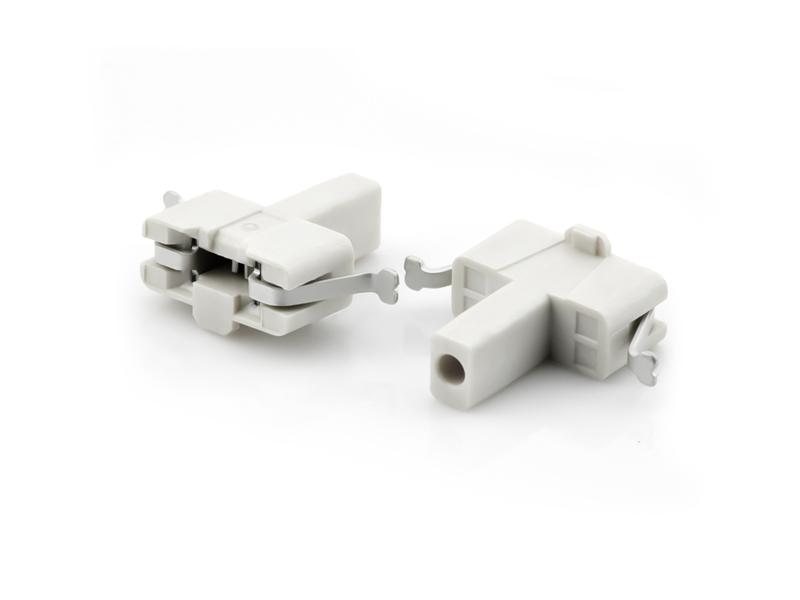

F5028, Led lighting connector, single pin, wiring connector
Property Details:
1. Materials:
1.1 Housing: LCP UL94 V-0
1.2 Terminals: Copper Alloy T=0.25mm
2. Plating: Terminals: Matte-in
3. Electrical performance:
3.1 Voltage Rated: 275V (AC/DC)
3.2 Current Rated: 1A
3.3 Insulation Resistance: 100MΩ min
3.4 Dielectric withstanding voltage: 500V AC R.M.S/1m
3.5 Strip Length: 7~8mm
3.6 Cross section: 20~22AWG(Str)
4. Environmental Characteristic
4.1 Storage temperature range: -10℃~+50℃ Half a year
4.2 Operating temperature range: -40℃~+105℃
5. RoHS compliant
Features and Advantages:
Low profle minimizes on-board shadowing
Terminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costs
Available in 1 pole configurations
Delivery in tape-and-reel packaging for full integration into SMT soldering process
Potential for significant savings via automated pick-and-place assembly
Application:
LED light bulb
LED strip light connector
Printed Circuit Board (PCB)
Certificate:
The quality control have the first priority in GHGM.
Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490
Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQC
Invention and Patents: US, Germany, Japan, China
Packing and Shipping:
We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.
Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.
These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
