  • GH23D05 2 row, 3 position, Vertical | Right Angle Slide Switch SMT DIP

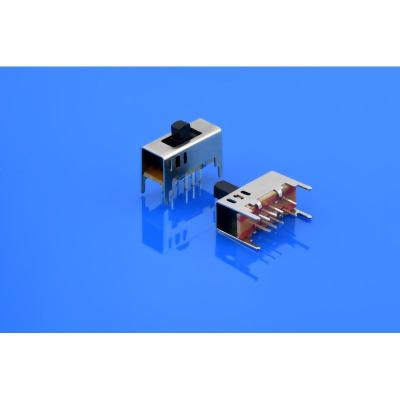

    GH23D05 90° / 180° handle direction, Slide Switch Double Pole Double Throw (DPDT), 3 position, SMD/DIP slide switch

    Slide Switch

    50V

    0.3A

    RoHS

    3 position

    Horizontal

    GH23D05 90° / 180° handle direction, Slide Switch Double Pole Double Throw (DPDT), 3 position, SMD/DIP slide switch
    Product Description:GH23D05 90° / 180° handle direction, Slide Switch Double Pole Double Throw (DPDT), 3 position, SMD/DIP slide switchProperty Details:1.   Materials:        1.1    Housing: Bakelite        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 50V (AC/DC)        3.2    Current Rated: 0.3A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:This series slide switches are designed for use in a wide variety of applications including portable tools, small appliances and floor care products. They feature a high current rating of 0.3A at 50 Vac yet are still manufactured in a compact housing.Application:Various portable tools, small appliances and floor care productsPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
