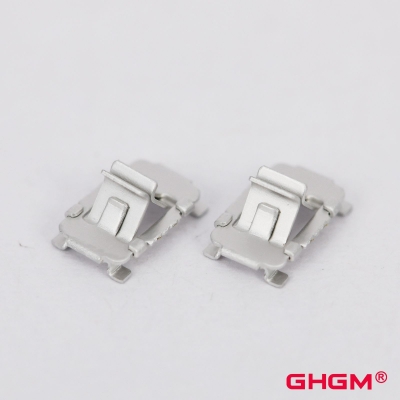

  • J0001, Metal Connector, Metal Female Connector mating with Metal Male Connector, LED bulb light connector
    J0001 Metal LED light connector, copper LED bulb light connector, AWG24

    LED bulb connector

    275V

    1A

    RoHS

    J0001 Metal LED light connector, copper LED bulb light connector, AWG24
    Product Description:J0001 Metal LED light connector, copper LED bulb light connector, AWG24Property Details:1.   Materials: Copper Alloy2.   Plating: Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingAvailalbe Printed circuit board (PCB), thickness: 1.0-1.2mm Delivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • J0003, Metal Connector, Metal Female Connector mating with Metal Male Connector, LED bulb light connector
    J0003 Metal LED light connector, copper LED bulb light connector, mating with copper alloy male connector J1001-J1007

    LED bulb connector

    275V

    1A

    RoHS

    J0003 Metal LED light connector, copper LED bulb light connector, mating with copper alloy male connector J1001-J1007
    Product Description:J0003 Metal LED light connector, copper LED bulb light connector, mating with copper alloy male connector J1001-J1007Property Details:1.   Materials: Copper Alloy2.   Plating: Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingAvailalbe Printed circuit board (PCB), thickness: 1.0-1.2mm Delivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • J0005, Metal Connector, Metal Female Connector mating with Metal Male Connector, LED bulb light connector
    J0005 Metal LED light connector, copper LED bulb light connector, mating with copper alloy connector J1001-J1007

    LED bulb connector

    275V

    1A

    RoHS

    J0005 Metal LED light connector, copper LED bulb light connector, mating with copper alloy connector J1001-J1007
    Product Description:J0005 Metal LED light connector, copper LED bulb light connector, mating with copper alloy connector J1001-J1007Property Details:1.   Materials: Copper Alloy2.   Plating: Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingAvailalbe Printed circuit board (PCB), thickness: 1.0-1.2mm Delivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • J0015, Metal Connector, Metal Female Connector mating with Metal Male Connector, LED bulb light connector
    J0015 Metal LED light connector, copper LED bulb light connector, mating with copper alloy connector J1001-J1007

    LED bulb connector

    275V

    1A

    RoHS

    J0015 Metal LED light connector, copper LED bulb light connector, mating with copper alloy connector J1001-J1007
    Product Description:J0015 Metal LED light connector, copper LED bulb light connector, mating with copper alloy connector J1001-J1007Property Details:1.   Materials: Copper Alloy2.   Plating: Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingAvailalbe Printed circuit board (PCB), thickness: 1.0-1.2mm Delivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Packing and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
  • J1004, Metal Connector, Metal Male Connector mating with Metal Female Connector, LED bulb light connector
    J1004 MaleMetal LED light connector, copper LED bulb light connector, mating with female copper alloy connector J0003, J0005, J0015

    LED bulb connector

    275V

    1A

    RoHS

    J1004 MaleMetal LED light connector, copper LED bulb light connector, mating with female copper alloy connector J0003, J0005, J0015
    Product Description:J1004 MaleMetal LED light connector, copper LED bulb light connector, mating with female copper alloy connector J0003, J0005, J0015Property Details:1.   Materials: Copper Alloy2.   Plating: Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingAvailalbe Printed circuit board (PCB), thickness: 1.0-1.2mm Delivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
1 ... 3 4 5

A total of 5 pages
